Torque Converter 1" (25.4mm) Heavy Duty
$399.00
About this product

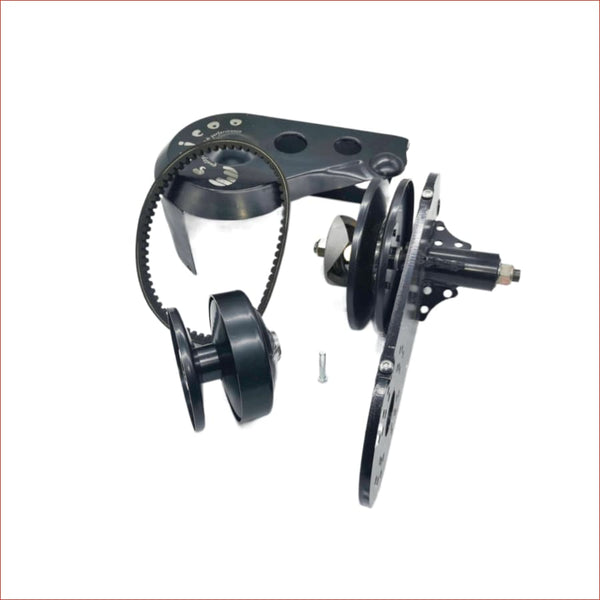

This complete Torque Converter Kit is designed for heavy-duty applications and accommodates a 25.4mm (1”) drive shaft, making it suitable for vehicles that require reliable torque transmission. It includes a 1" bore drive clutch and a 5/8” bore driven pulley with a 6” diameter for efficient power transfer. The drive belt features a 3/4″ top width and is asymmetrical for enhanced performance. The kit also comes with an aluminium mounting back plate and a durable plastic cover. Additionally, a sprocket with a 10 tooth 420 pitch is included, suitable for engines with a power capacity between 8 to 16 HP.
Specifications
| Specification | Detail |
|---|---|
| Drive Shaft Size | 25.4mm (1") |
| Drive Clutch Bore | 1" |
| Driven Pulley Bore | 5/8" |
| Pulley Diameter | 6" |
| Drive Belt | 3/4″ Top Width - Asymmetrical |
| Mounting Back Plate | Aluminium |
| Cover | Plastic |
| Sprocket | 10 Tooth 420 Pitch |
| Application | 8 - 16 HP |
Features & Benefits
- Robust design suitable for heavy-duty use.
- Efficient power transfer with 6” diameter driven pulley.
- Compatible with engines from 8 to 16 HP.
- Easy installation with inclusive mounting back plate and cover.
- Durable construction for long-lasting performance.
