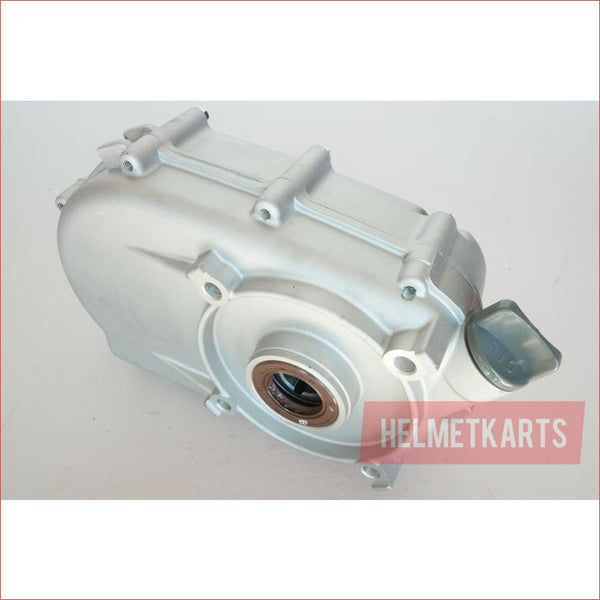

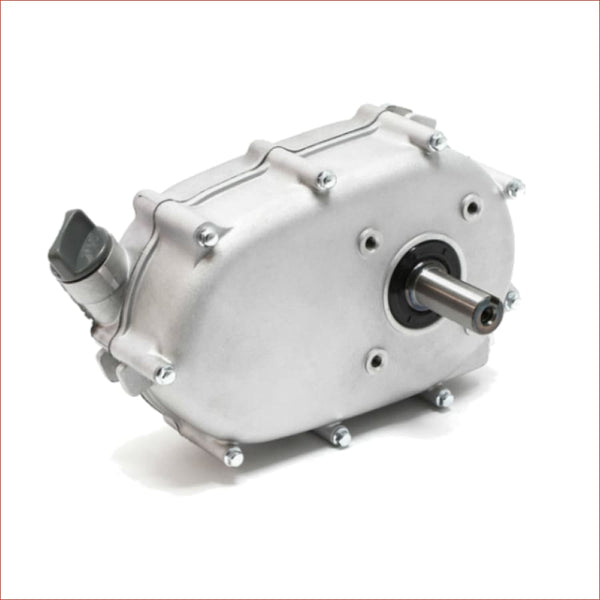

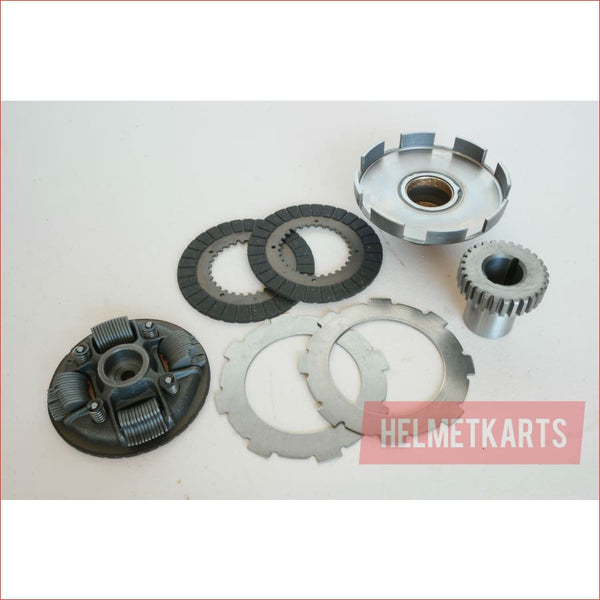

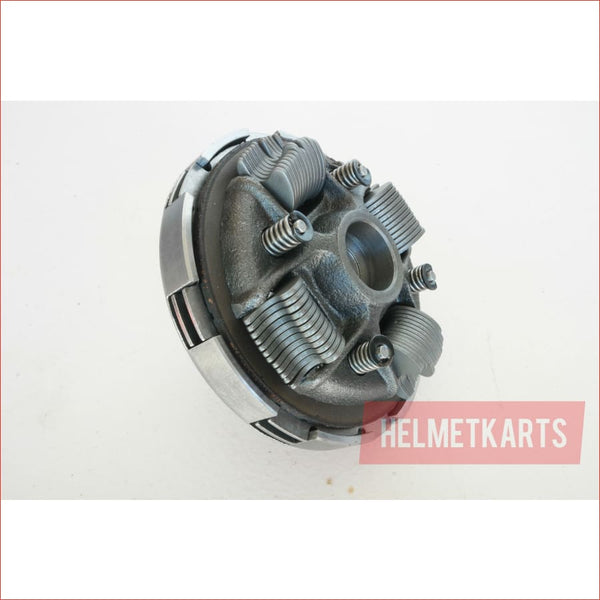

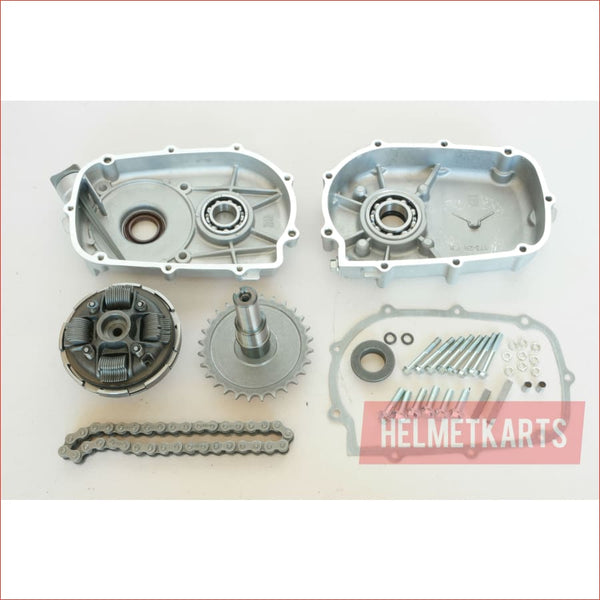

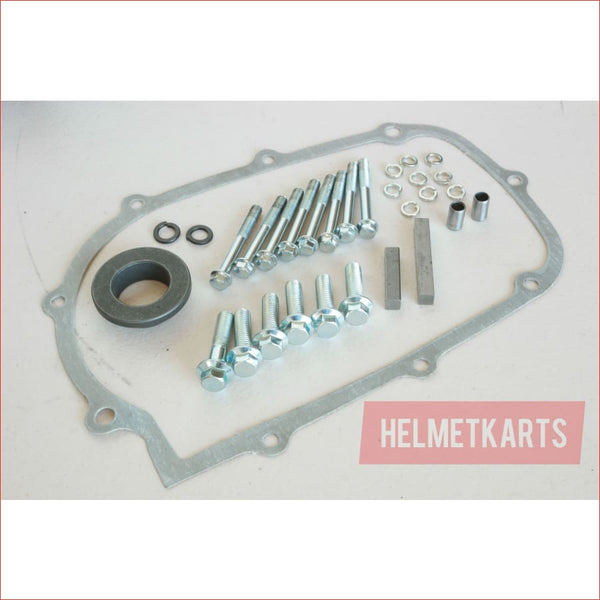

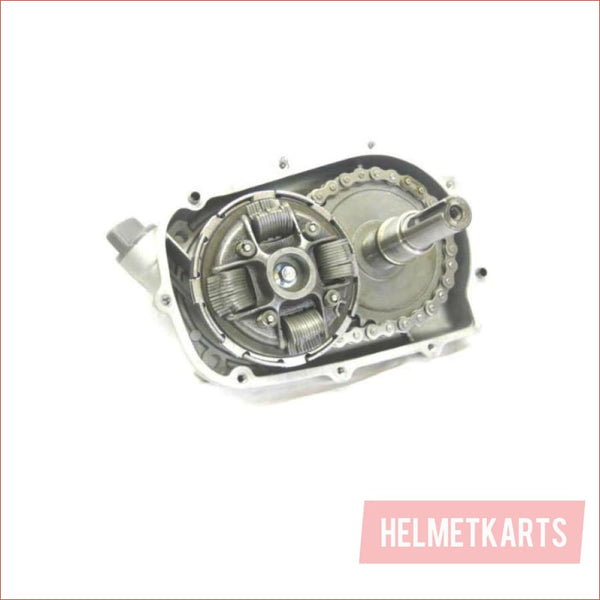

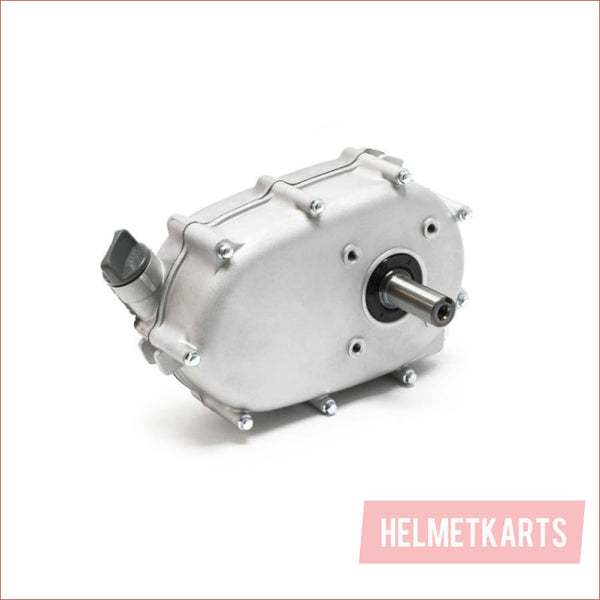

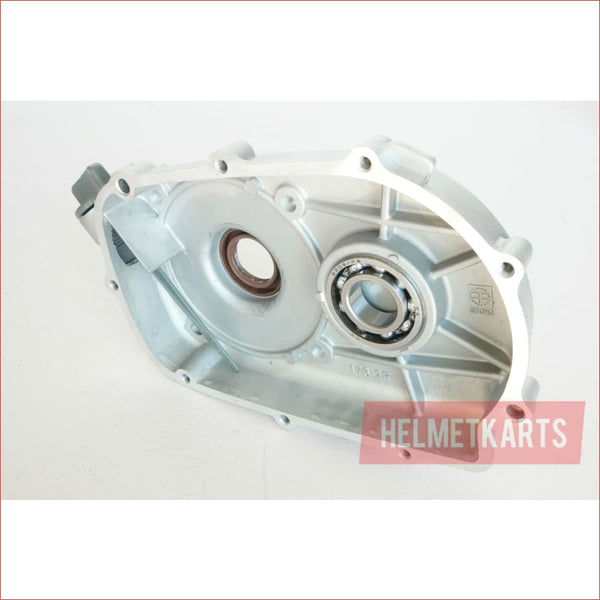

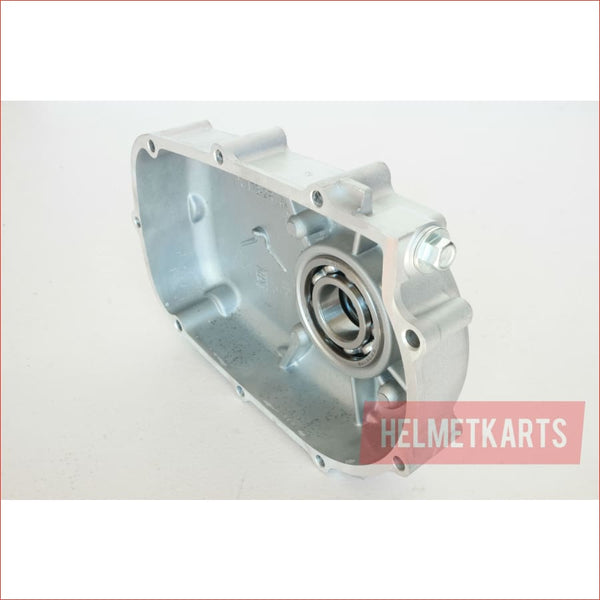

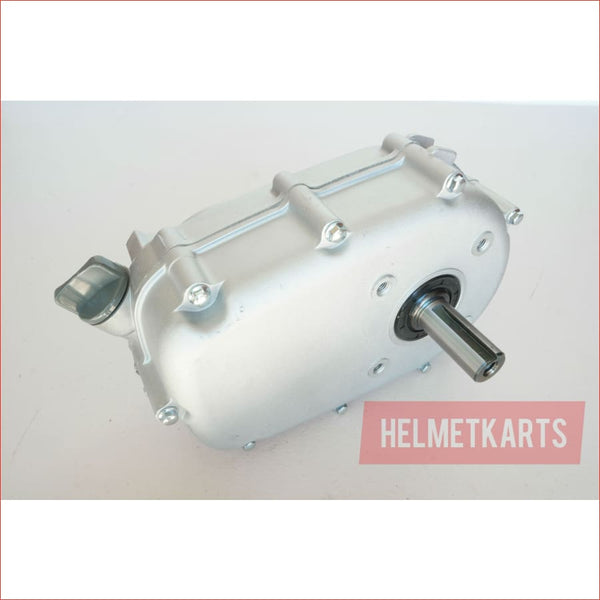

Introducing the Wet Clutch 2:1 Reduction Gearbox suitable for GX140 to GX200 engines. This gearbox is ideal for applications requiring 5HP to 6.5HP engines, making it perfect for both kids' and adults' vehicles. It features a precision-machined aluminium die-cast housing and a standard SAE mounting hole configuration, ensuring durability and ease of installation. Complete with a clutch drum with weights, oil seal, gaskets, and bearings (E-205 / GB276-82), this gearbox promises efficient and reliable performance. The gearbox incorporates an oil dipstick with a breather, and M8 (x4) threaded deep output mounting holes that are 21mm, enhancing its utility and user-friendliness.
Specifications
Specification
Detail
Applicatio
5HP - 6.5HP (GX140 - GX200)
Input Shaft
20mm Diameter, 50mm Long
Output Shaft
20mm Diameter, 50mm Long
Keyway
5mm
Bearing
E-205 / GB276-82
Weight
4 kg
Features & Benefits
Optimised for 5HP to 6.5HP engines; ideal for GX140 and GX200 applications.
Durable and precise with an aluminium die-cast housing.
Includes all necessary components: clutch drum, oil seal, gaskets, and bearings.
Easy installation with standard SAE mounting hole configuration.
Designed for efficient power transfer and optimal performance.
