Name: 52.4mm Cylinder Piston Rebuild Kit - 125cc GY6
SKU: 6834254184501
Price: 64 AUD
Availability: InStock

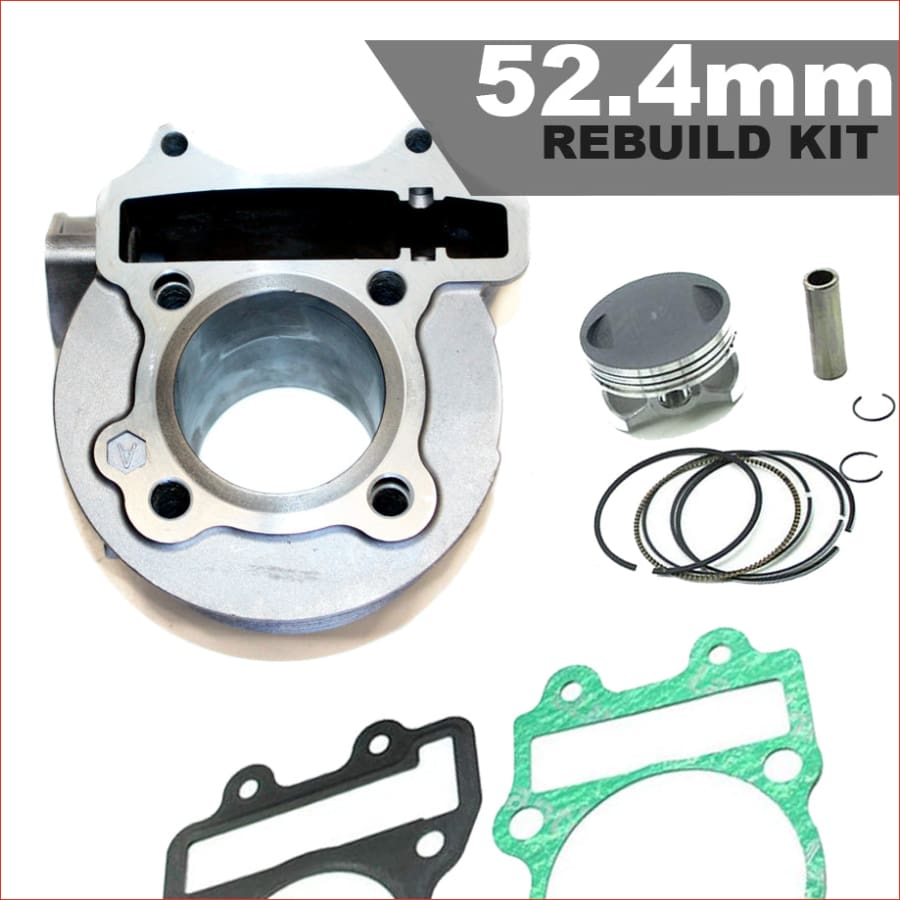

52.4mm Cylinder Piston Rebuild Kit - 125cc GY6

$64.00

About this product

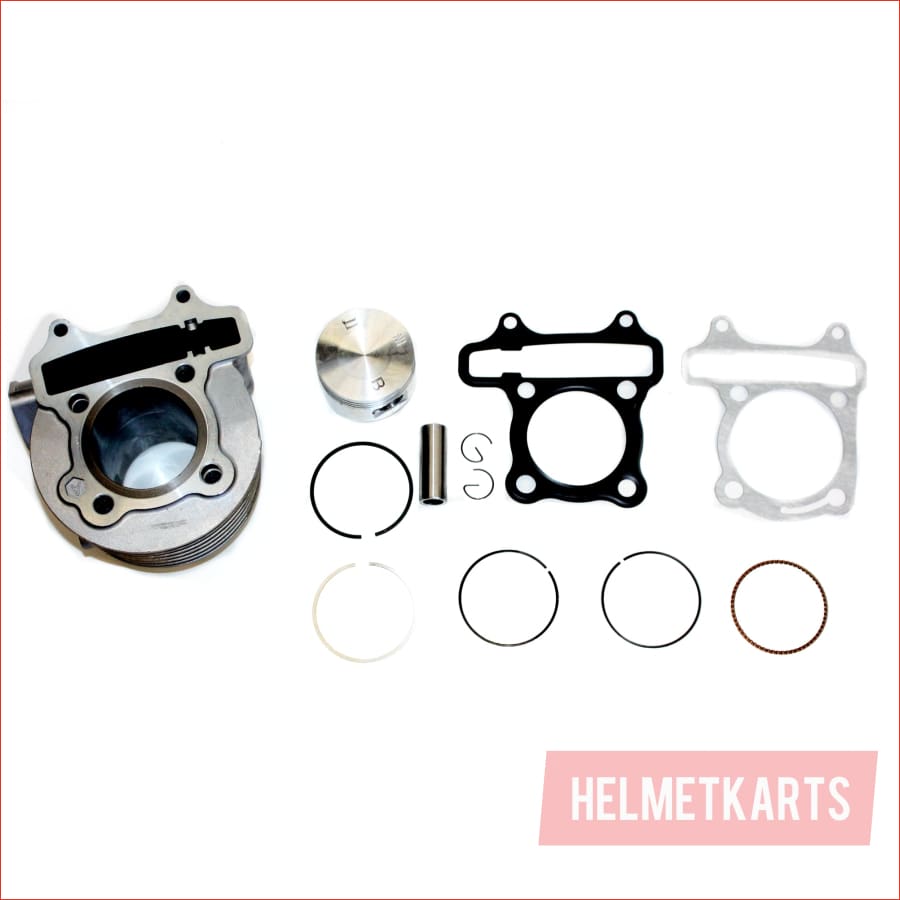

This 52.4mm Cylinder Piston Rebuild Kit is designed specifically for 125cc GY6 engines. It provides everything you need for an Engine Rebuild including the cylinder, piston, and necessary gaskets. Ideal for maintaining optimal engine performance, this kit is compatible with GY6 125cc engines.

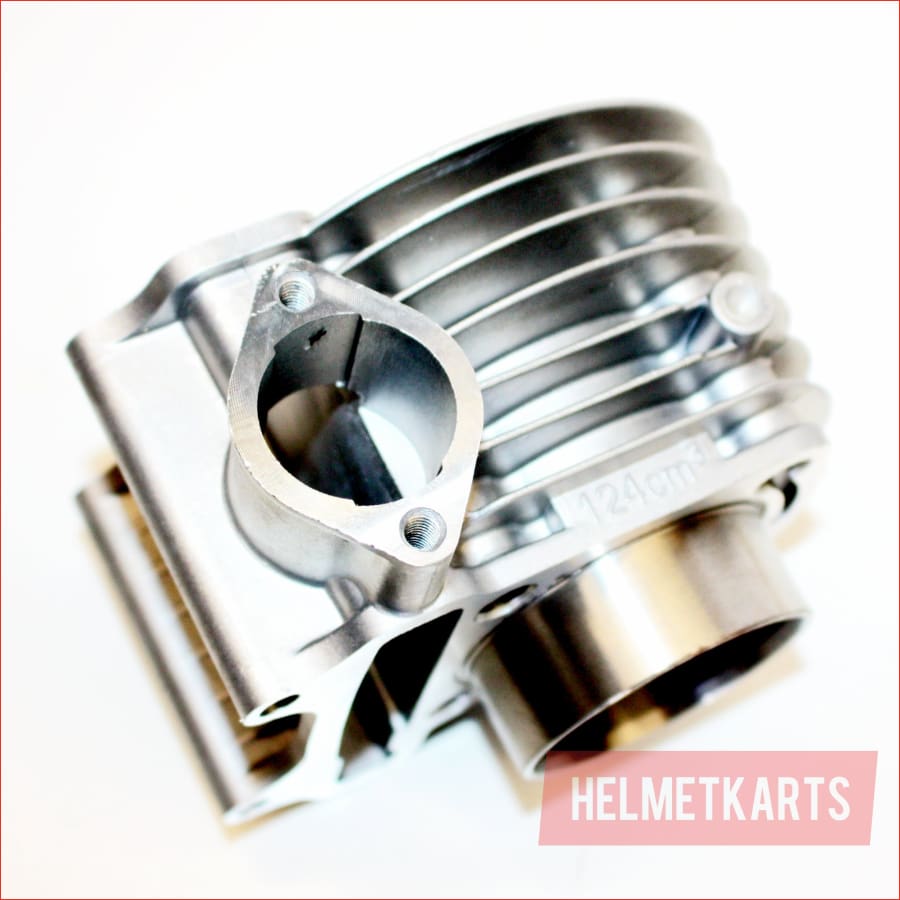

Specifications

Specification	Detail

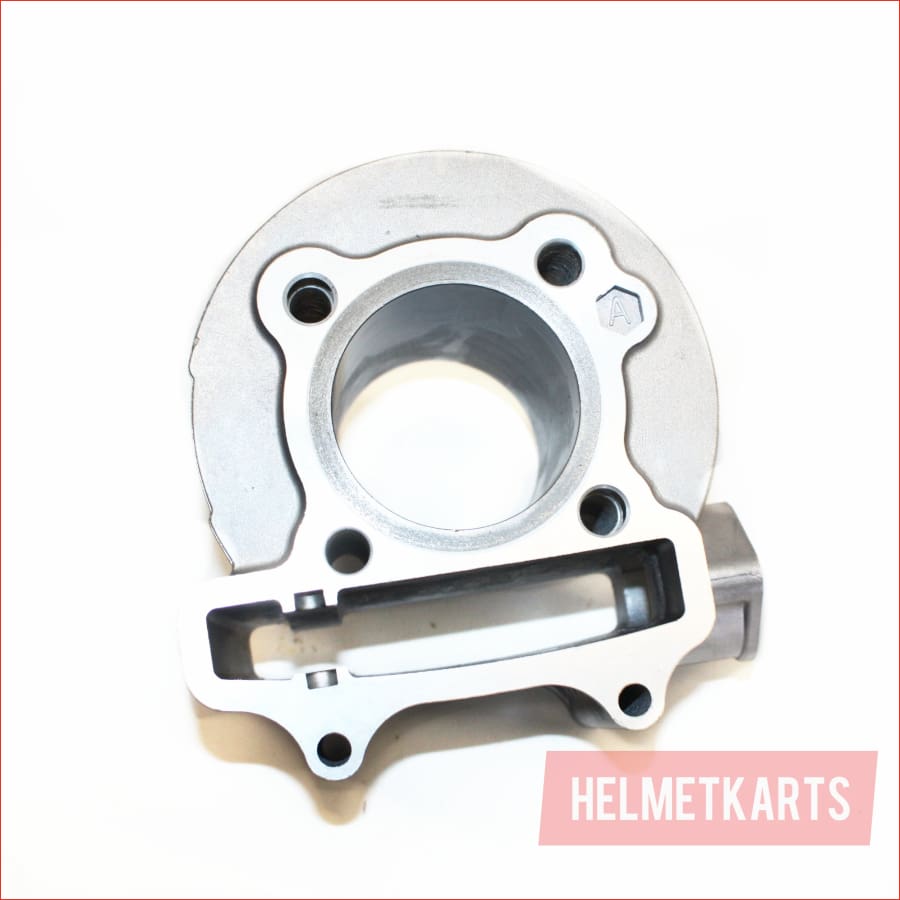

DIAMETER OF BORE	approx 52.22mm
DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS	approx 53.42mm / 53.65mm / 53.14mm / 53.30mm
HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE)	approx 68.80mm
HEIGHT OF THE SLEEVE	approx 21.56mm

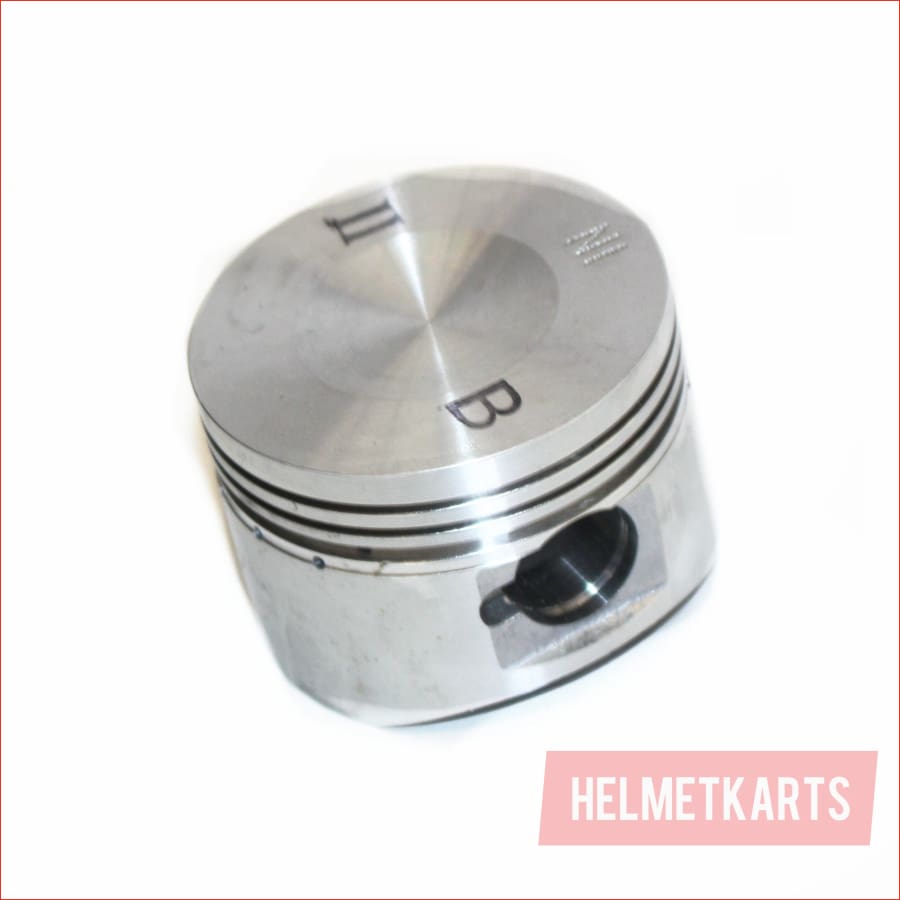

Specification	Detail

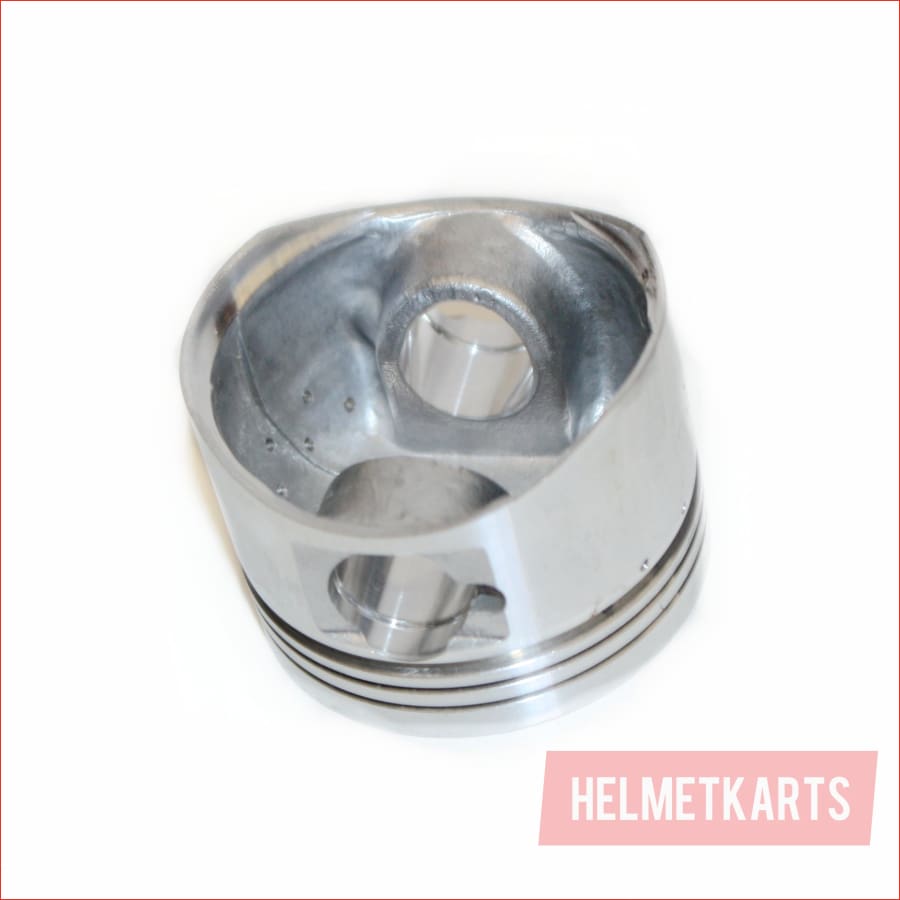

DIAMETER OF PISTON (Bottom)	approx 52.38mm
HEIGHT OF PISTON (Bottom to Top Middle)	approx 37.05mm

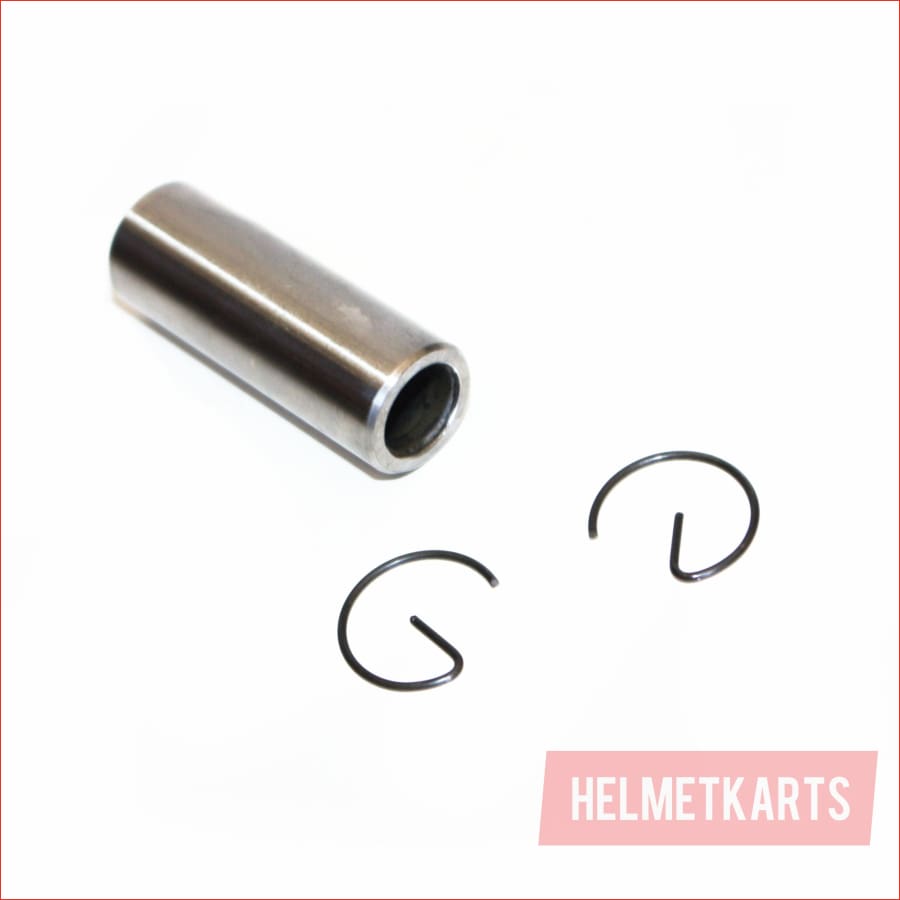

LENGTH OF PISTON PIN	approx 41.26mm
DIAMETER OF PISTON PIN	approx 14.98mm

Features & Benefits

Comprehensive rebuild kit for 125cc GY6 engines.

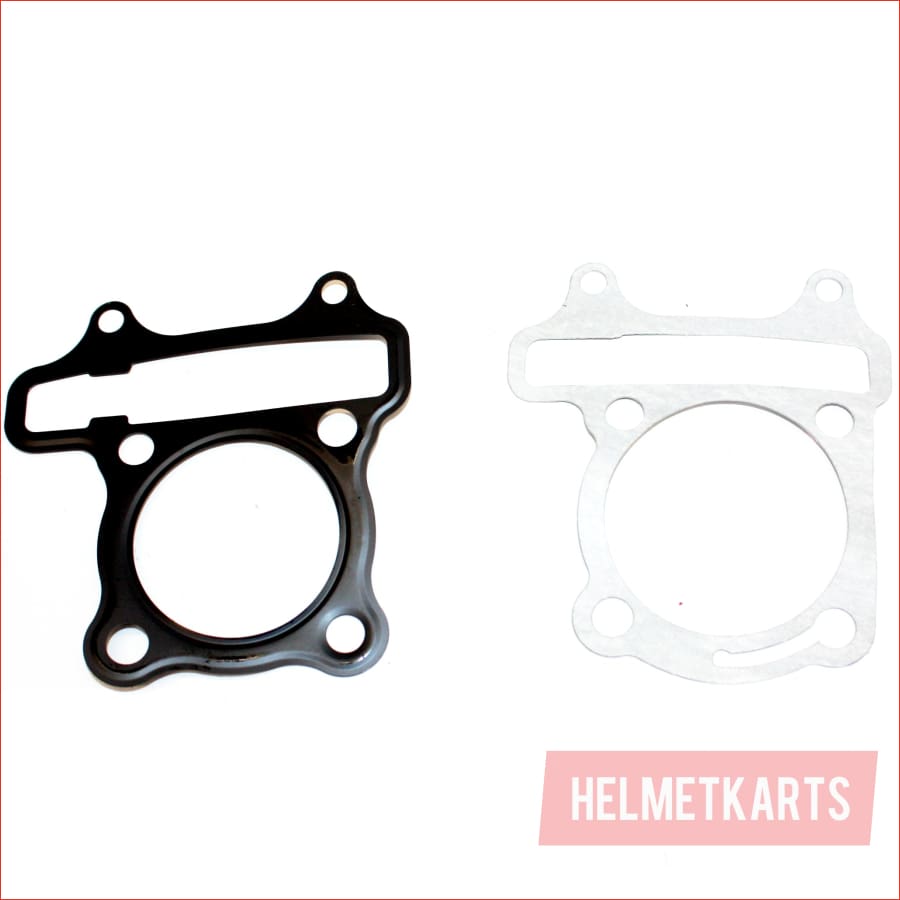

Includes all essential components: cylinder, piston, and gaskets.
Ensures optimal engine performance.
Precision engineering for perfect fitment and durability.
