Name: 62.5mm Cylinder Piston Rebuild Kit - 200cc GY6
SKU: 6834265554997
Price: 89 AUD
Availability: InStock

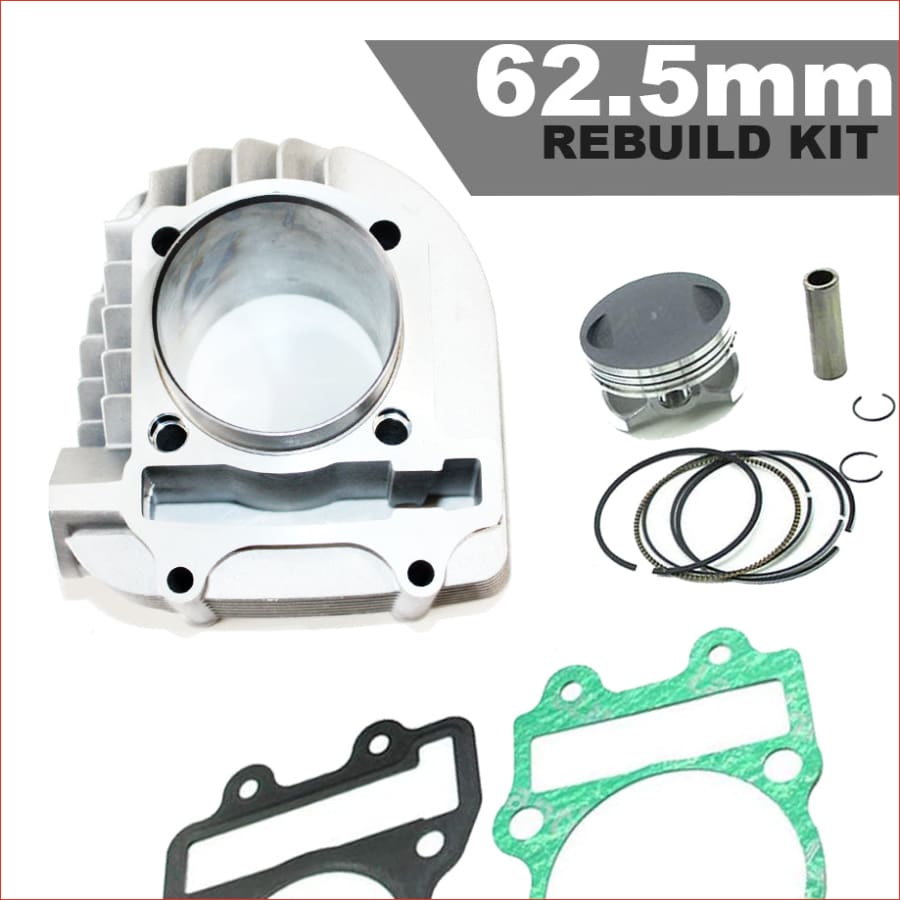

62.5mm Cylinder Piston Rebuild Kit - 200cc GY6

$89.00

About this product

The 62.5mm Cylinder Piston Rebuild Kit is designed specifically for 200cc GY6 engines found in ATV Quads and Buggies. This kit includes all necessary components for a comprehensive engine rebuild, featuring the cylinder, piston, and gaskets to ensure optimal engine performance and longevity. With this kit, you can restore your engine's functionality, improve efficiency, and enhance the overall performance of your vehicle.

Specifications

Specification	Detail

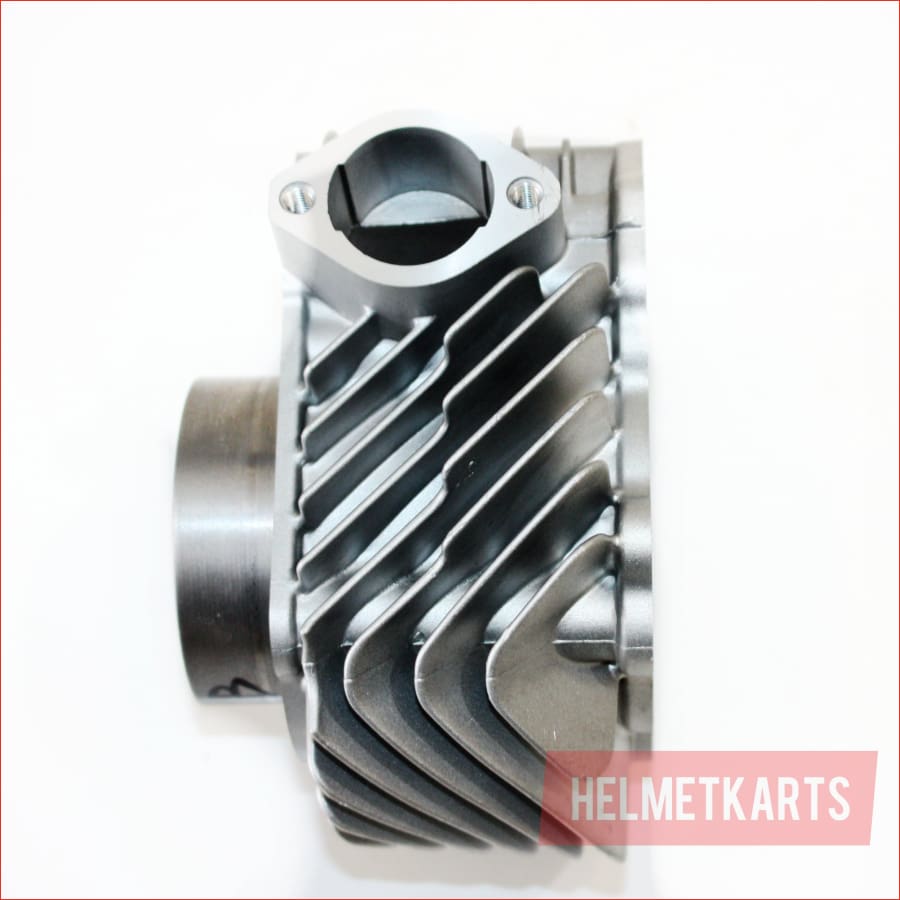

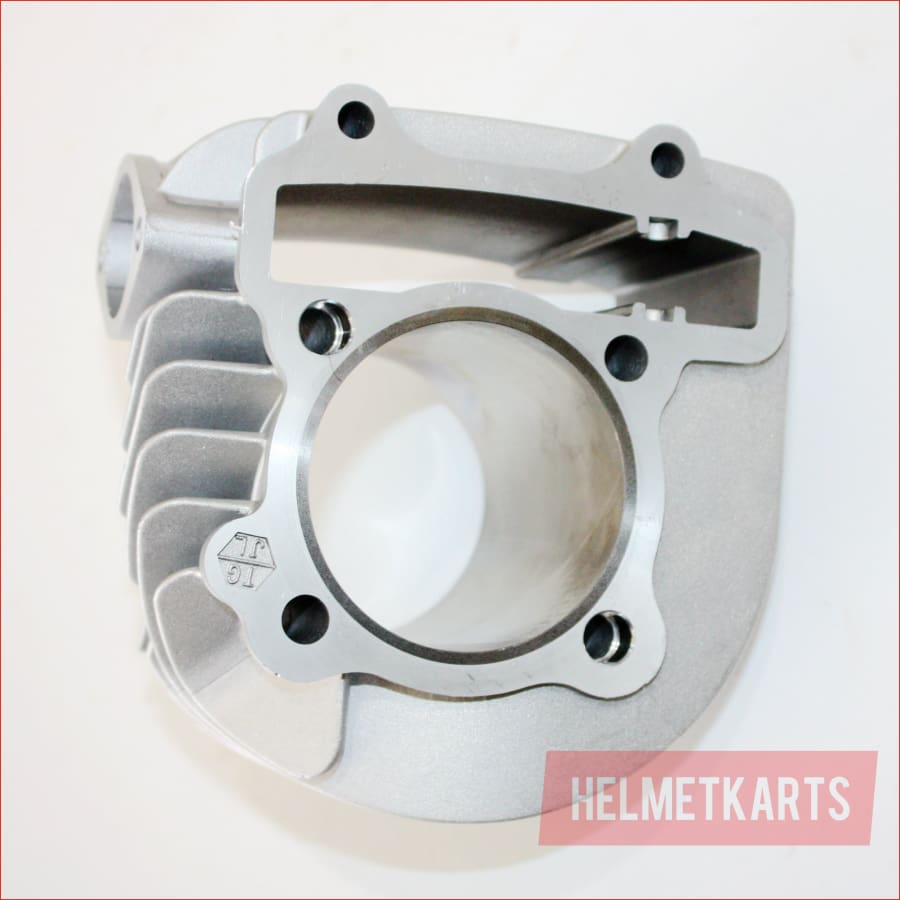

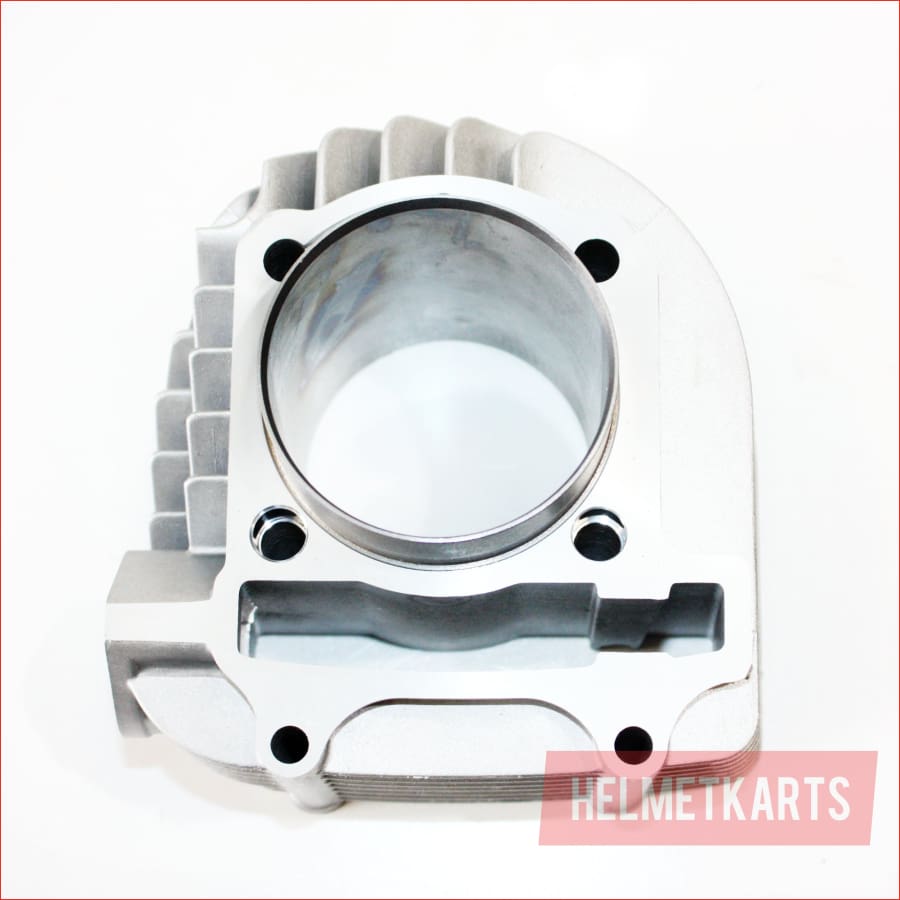

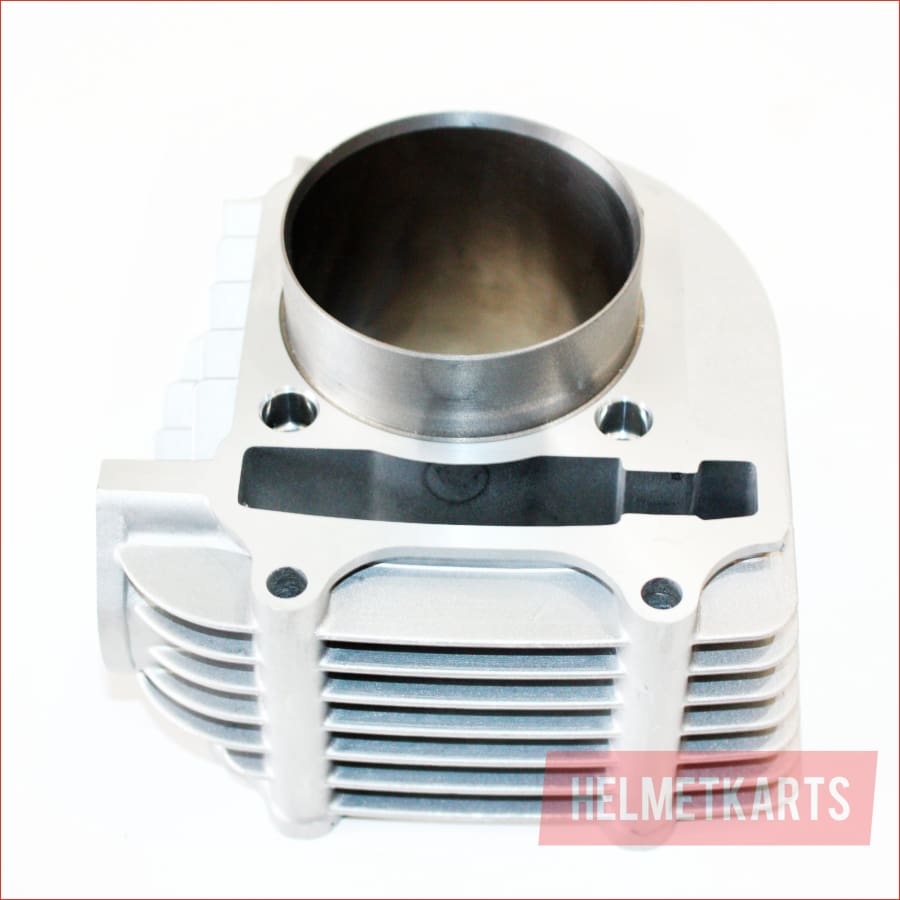

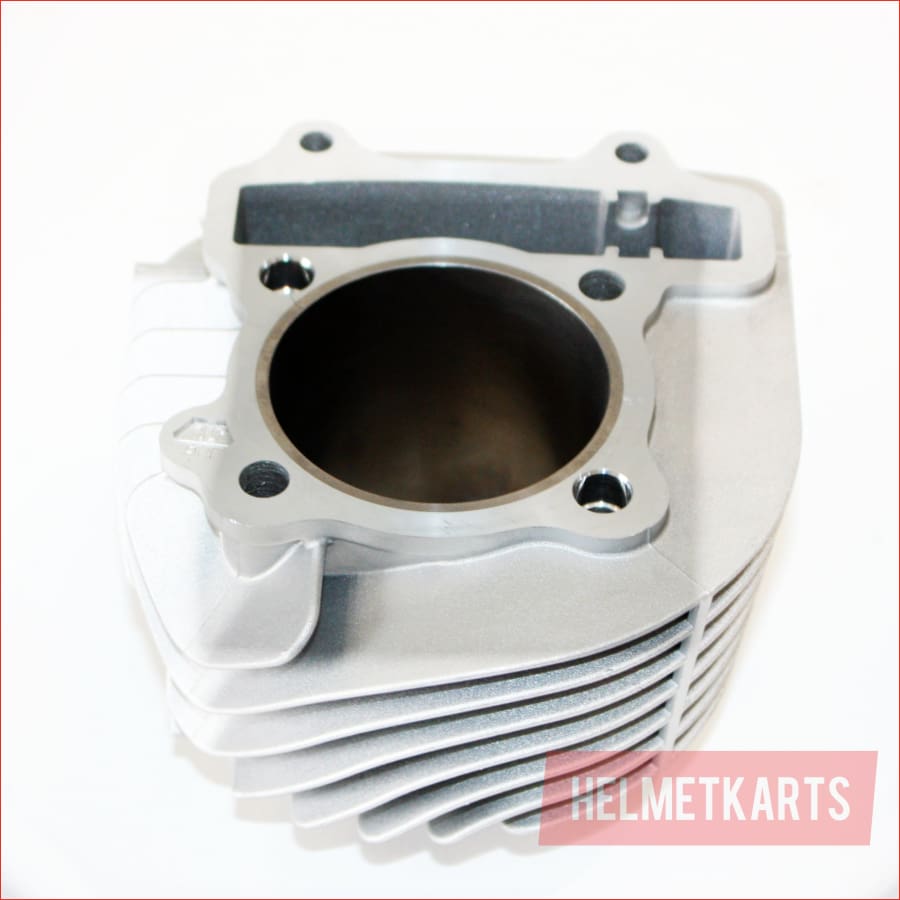

DIAMETER OF BORE	approx 62.45mm
DISTANCE BETWEEN HEAD BOLTS (CENTER HOLE TO CENTER HOLE) CLOCKWISE EACH TWO BOLTS	approx 53.42mm / 59.98mm / 53.14mm / 60.67mm
HEIGHT OF THE BARREL (NOT INCLUDING THE SLEEVE)	approx 69.55mm
HEIGHT OF THE SLEEVE	approx 20.99mm

Specification	Detail

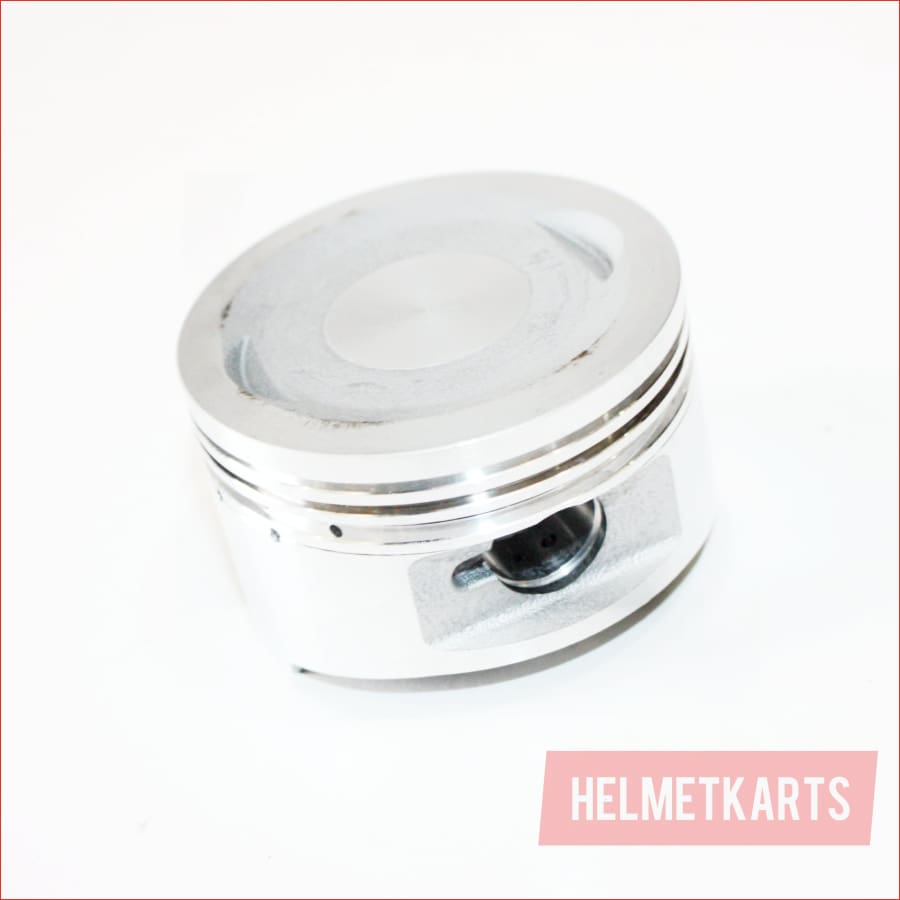

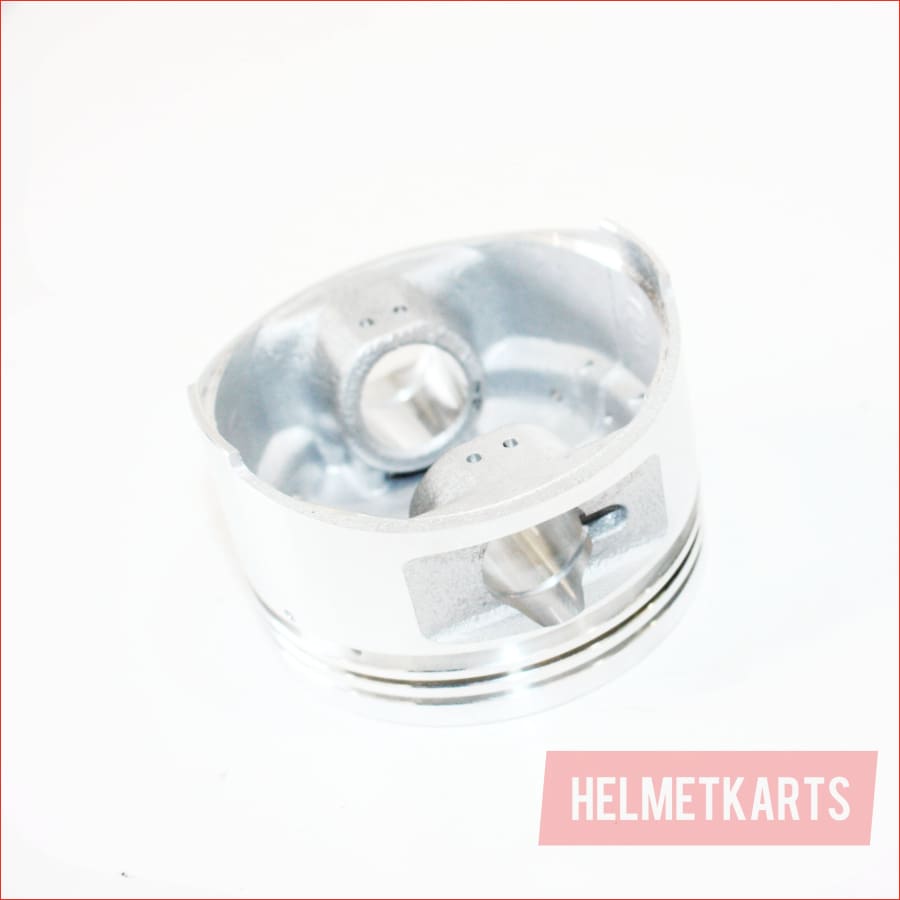

DIAMETER OF PISTON	approx 62.45mm
HEIGHT OF PISTON	approx 39.44mm

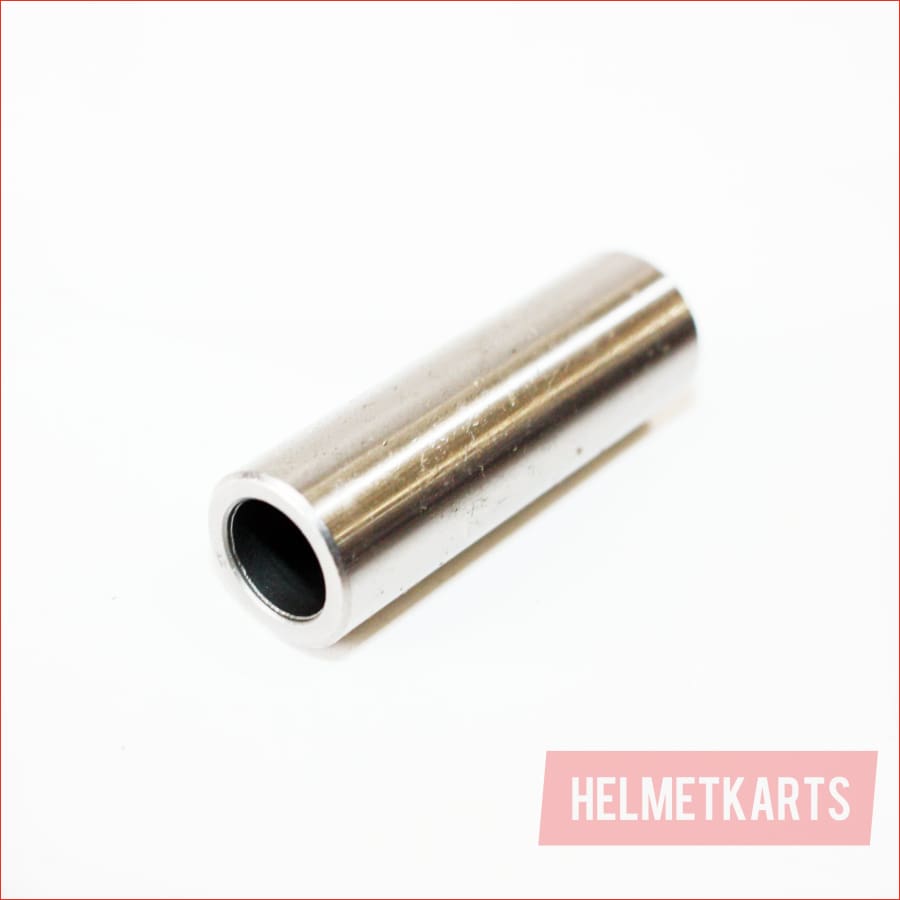

LENGTH OF PISTON PIN	approx 46.55mm
DIAMETER OF PISTON PIN	approx 14.95mm

Features & Benefits

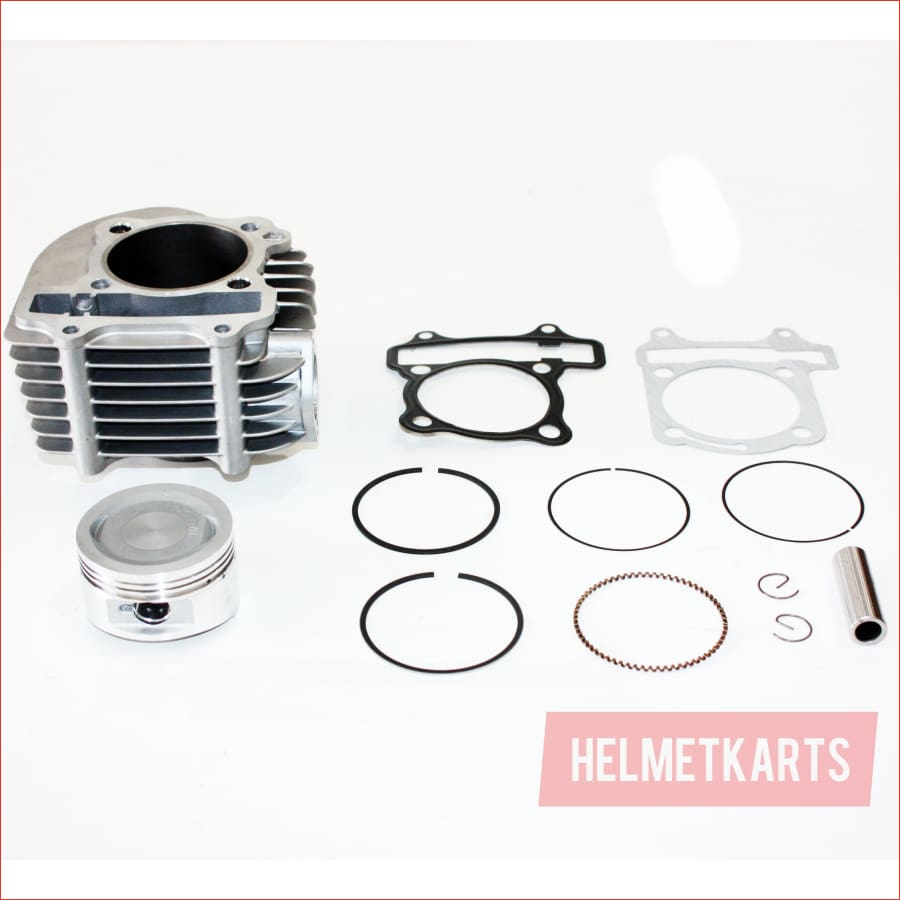

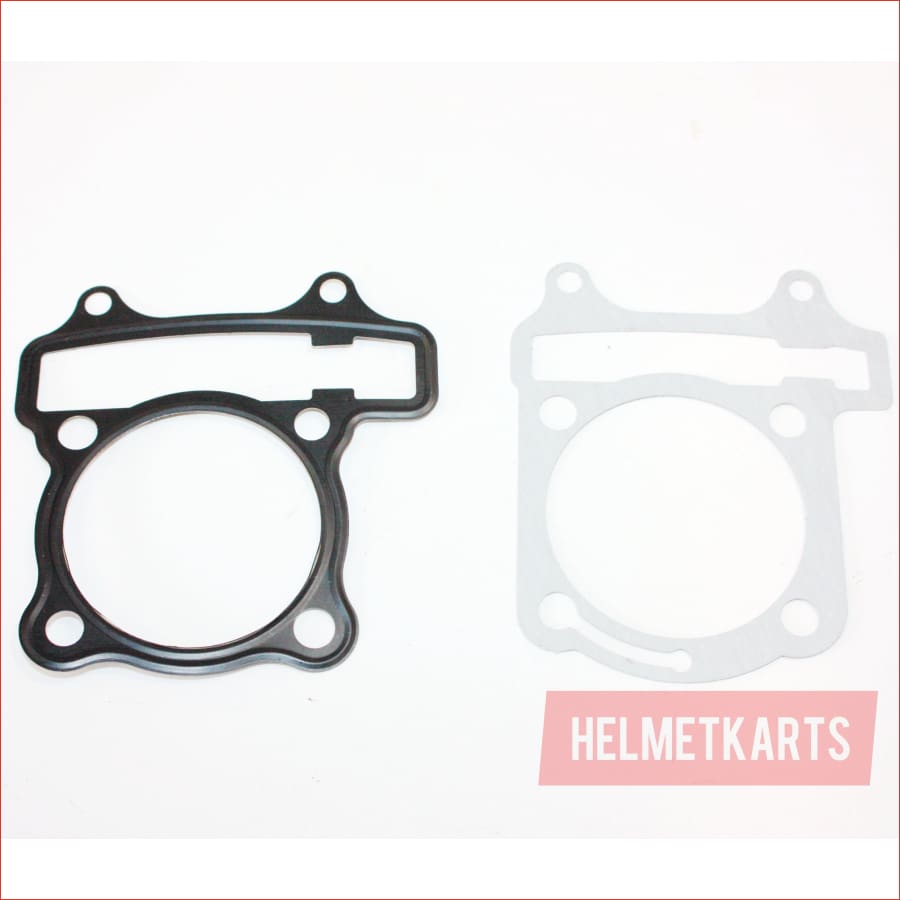

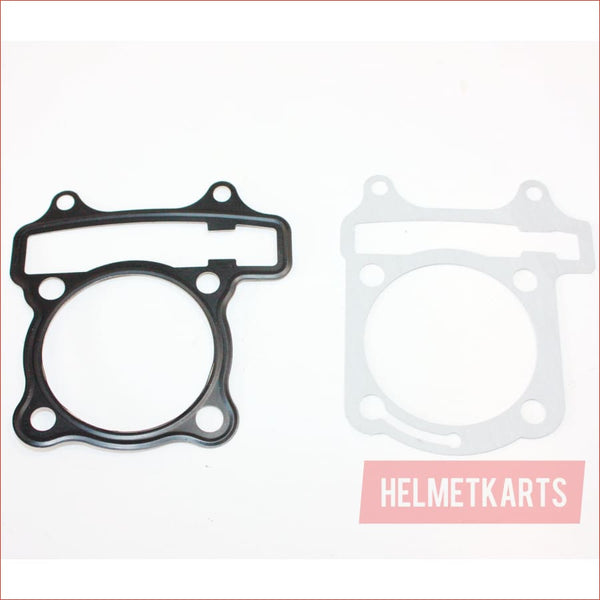

Comprehensive rebuild kit including cylinder, piston, and gaskets
Specifically designed for 200cc GY6 engines
Ideal for ATV Quads and Buggies
Enhances engine performance and reliability
Ensures optimal fitment and compatibility for seamless installation
