Goliath kit - Bundle pack #2
About this product

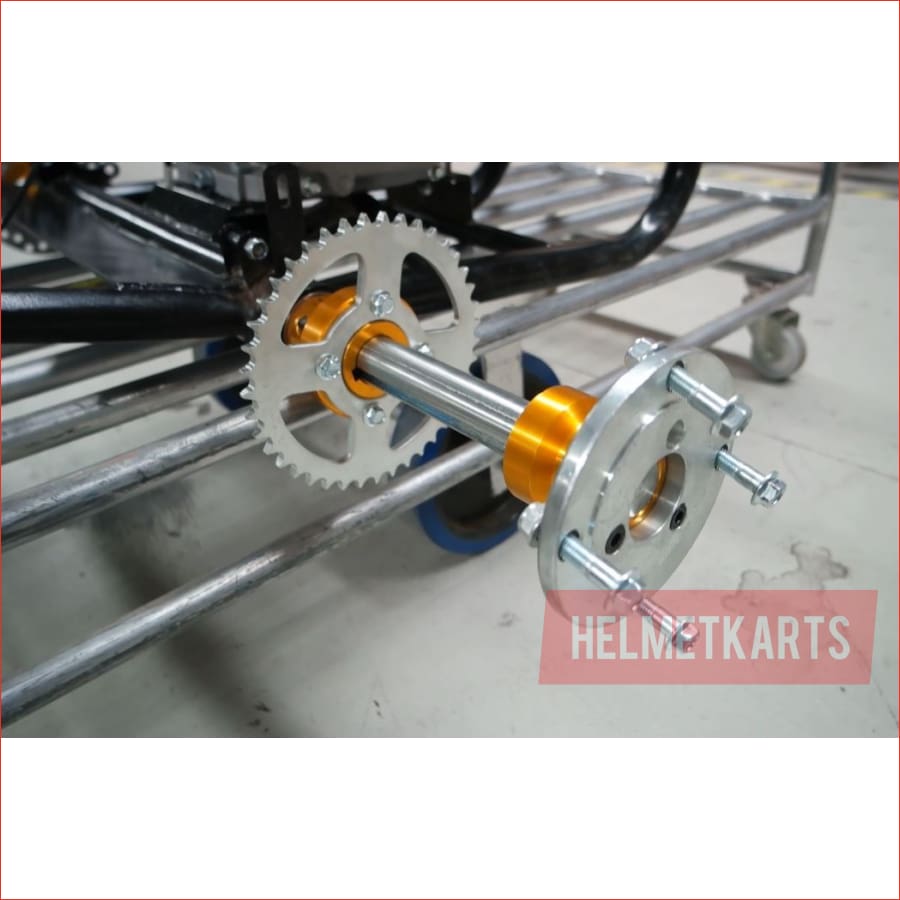

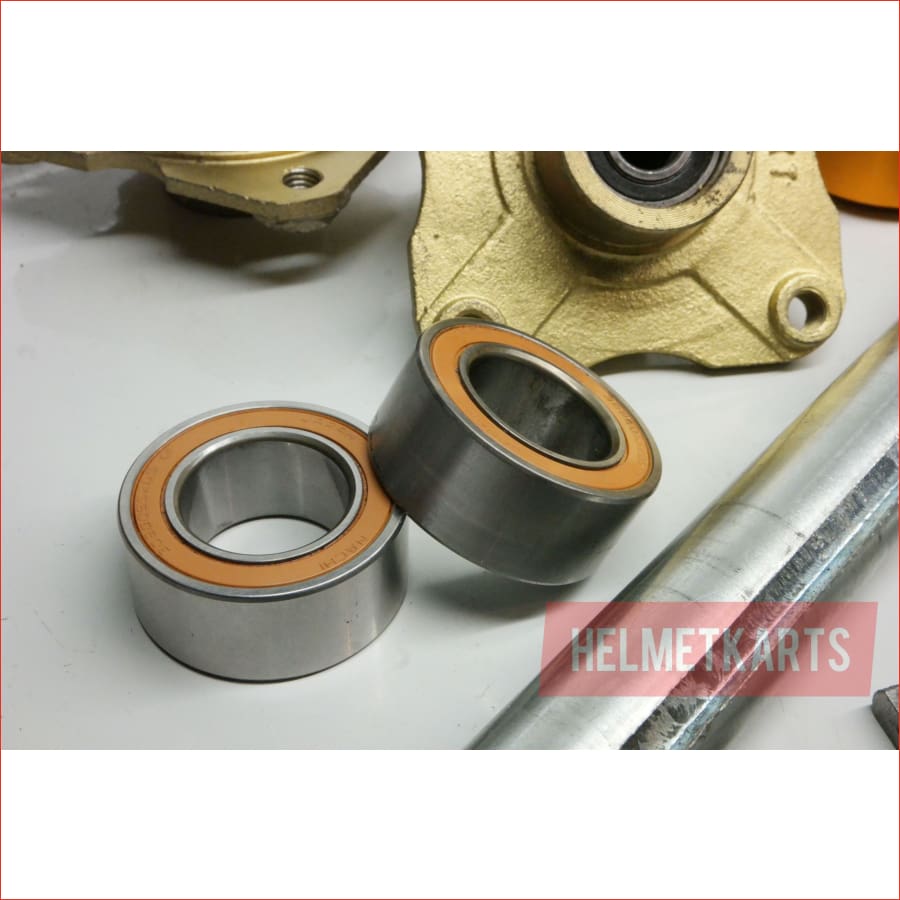

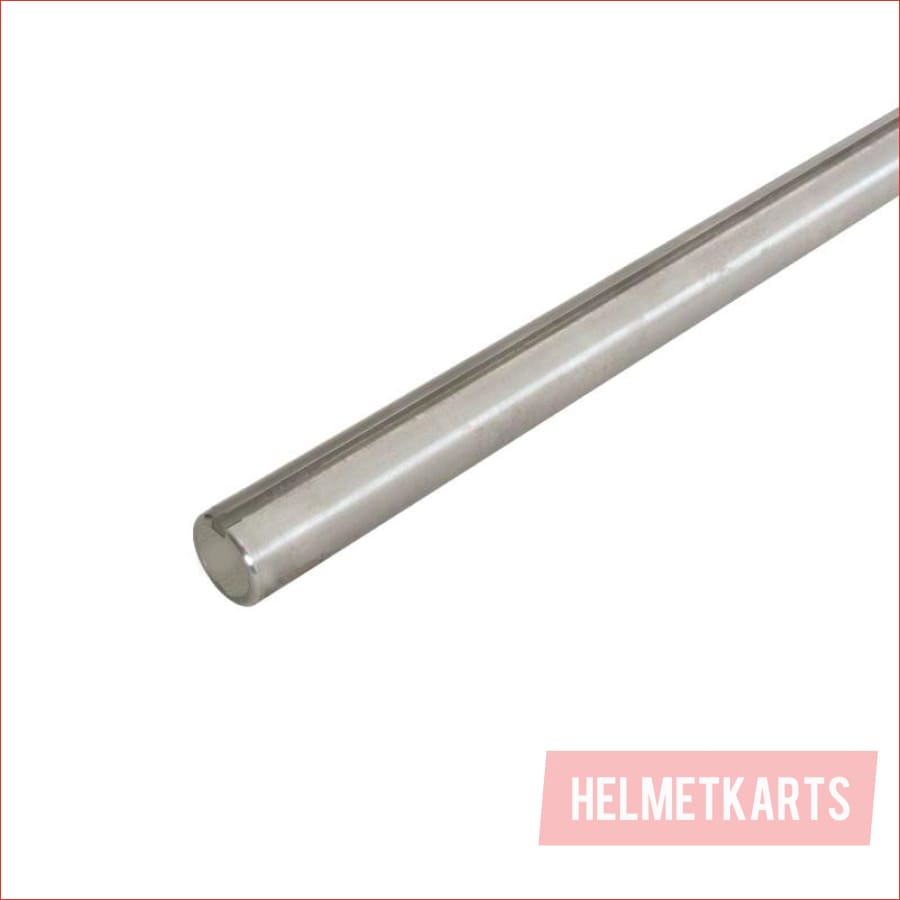

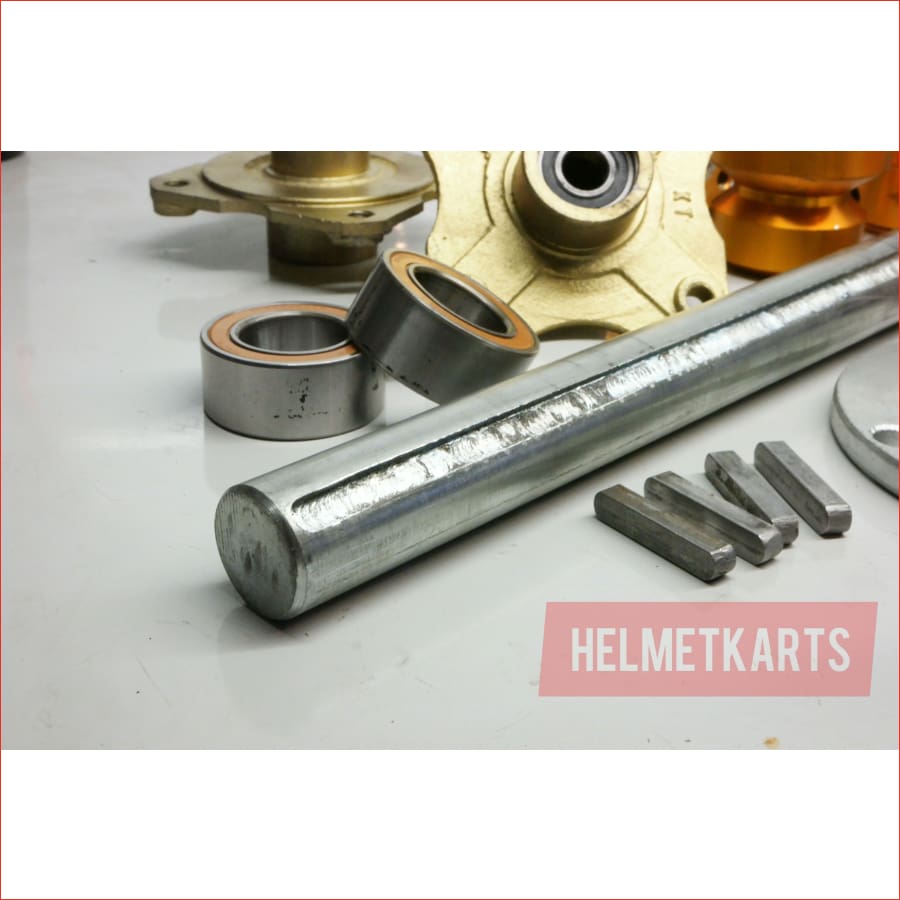

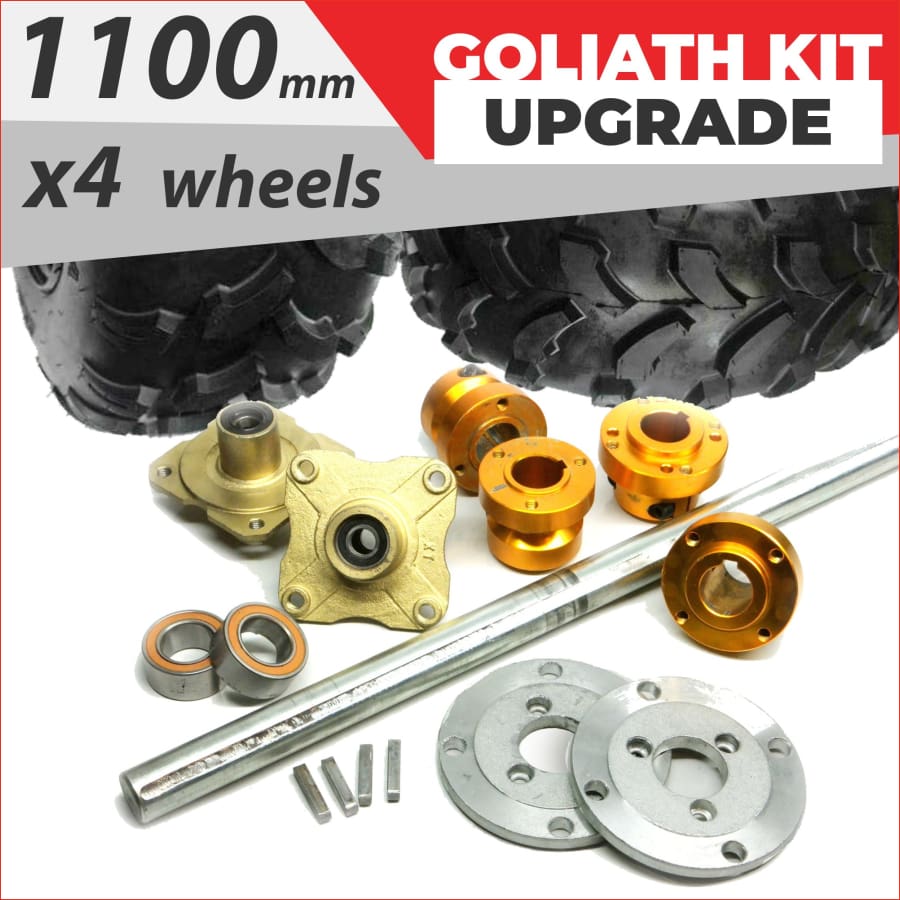

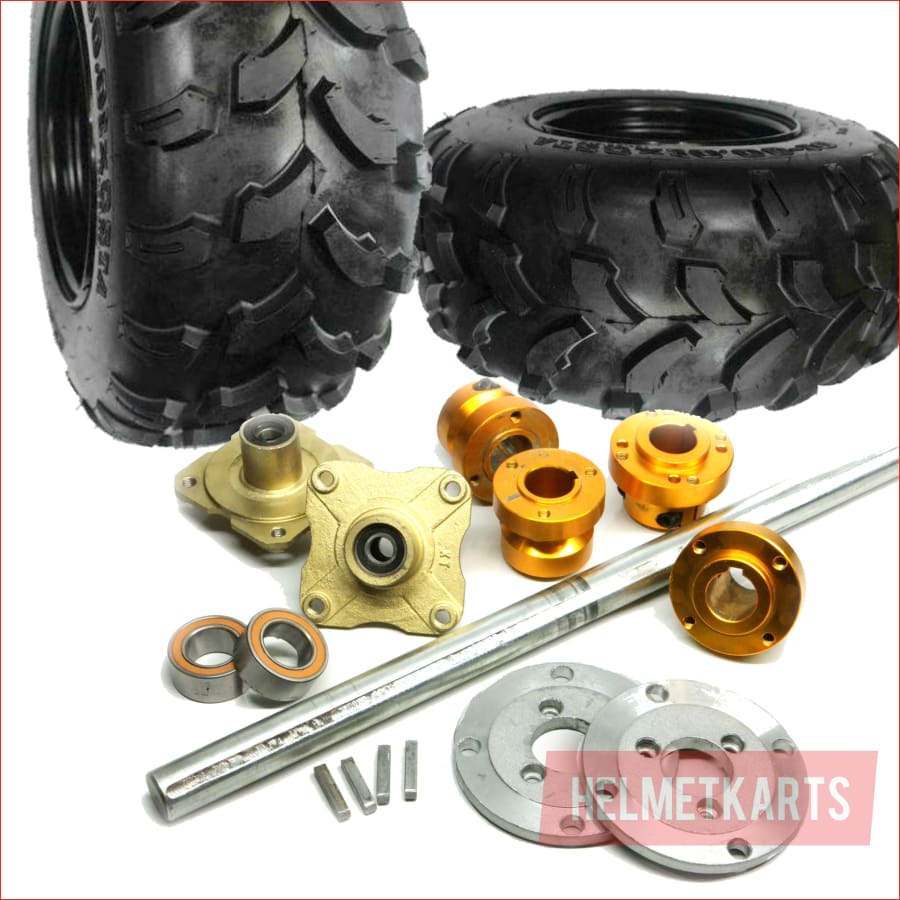

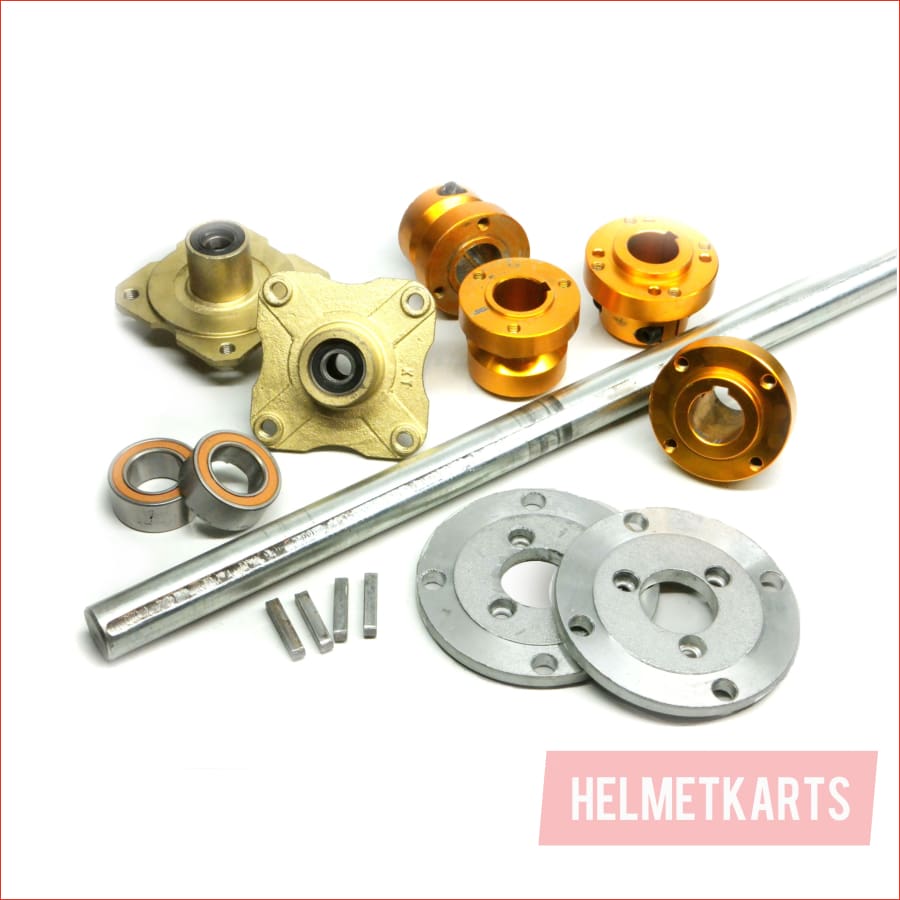

The Goliath Kit - Bundle Pack #2 is a commercial-grade upgrade designed for maximum performance and durability. This kit includes complete running gear and four robust wheels, ensuring your go-kart operates smoothly on various terrains. The axle measures 1100mm in length and 30mm in thickness, equipped with a full-length 8mm keyway and double barrel axle bearings (30BG05S2G2DS) for enhanced stability.

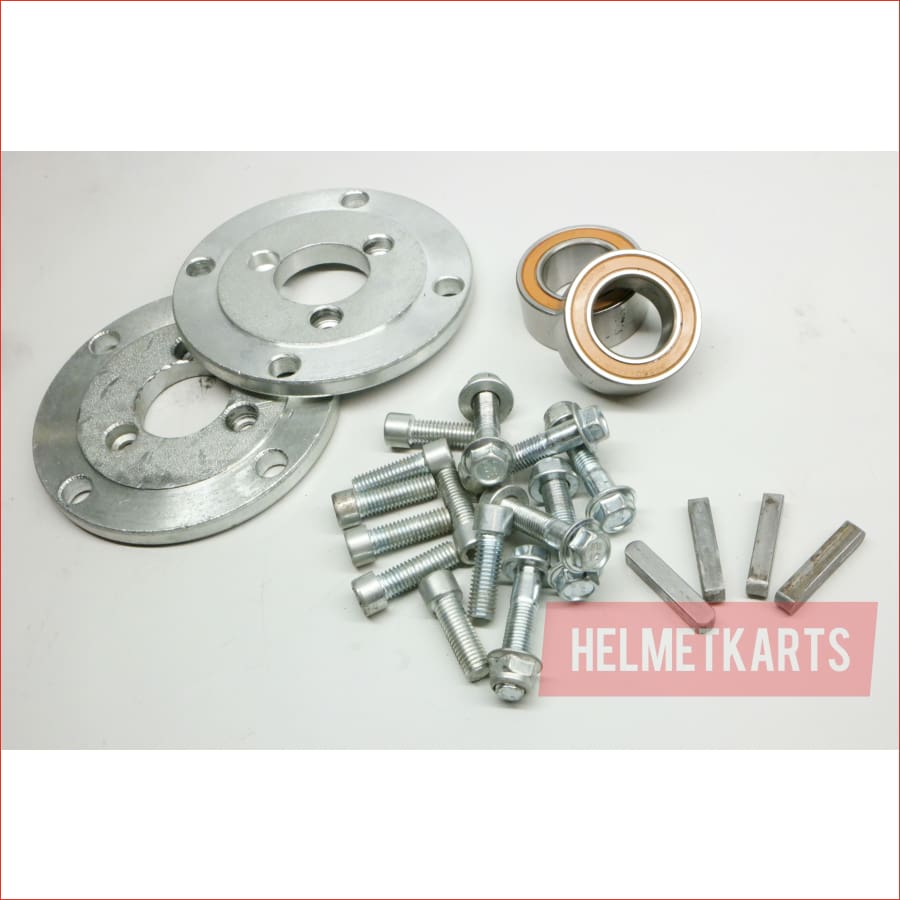

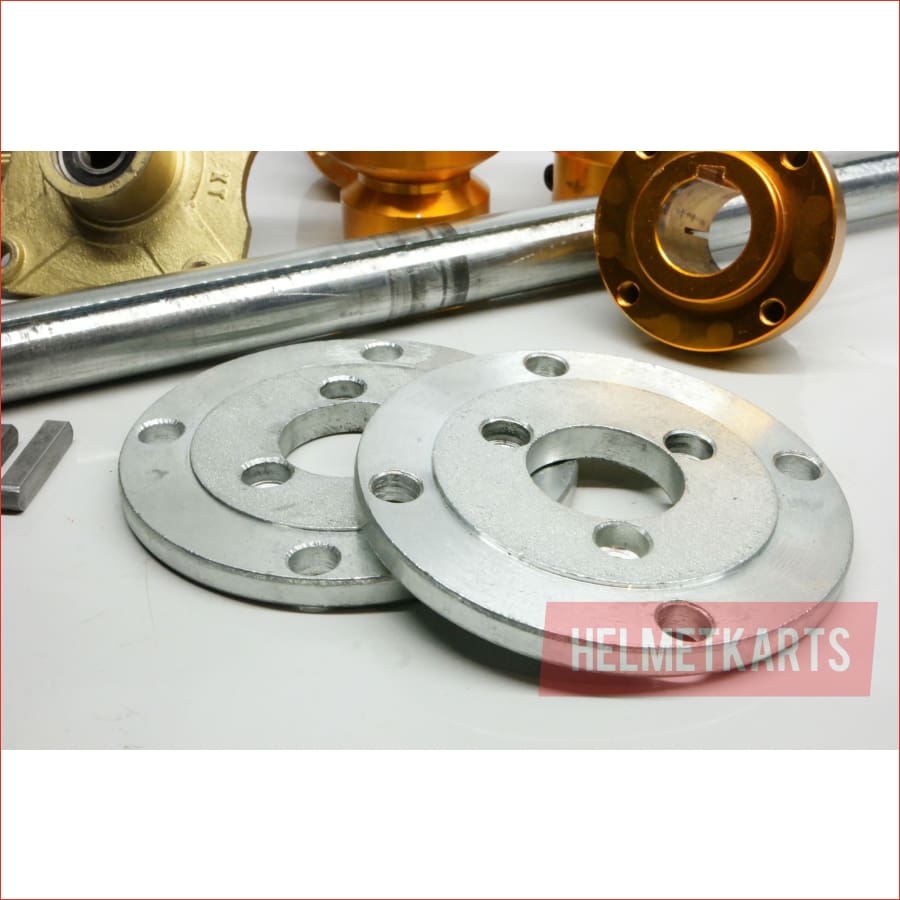

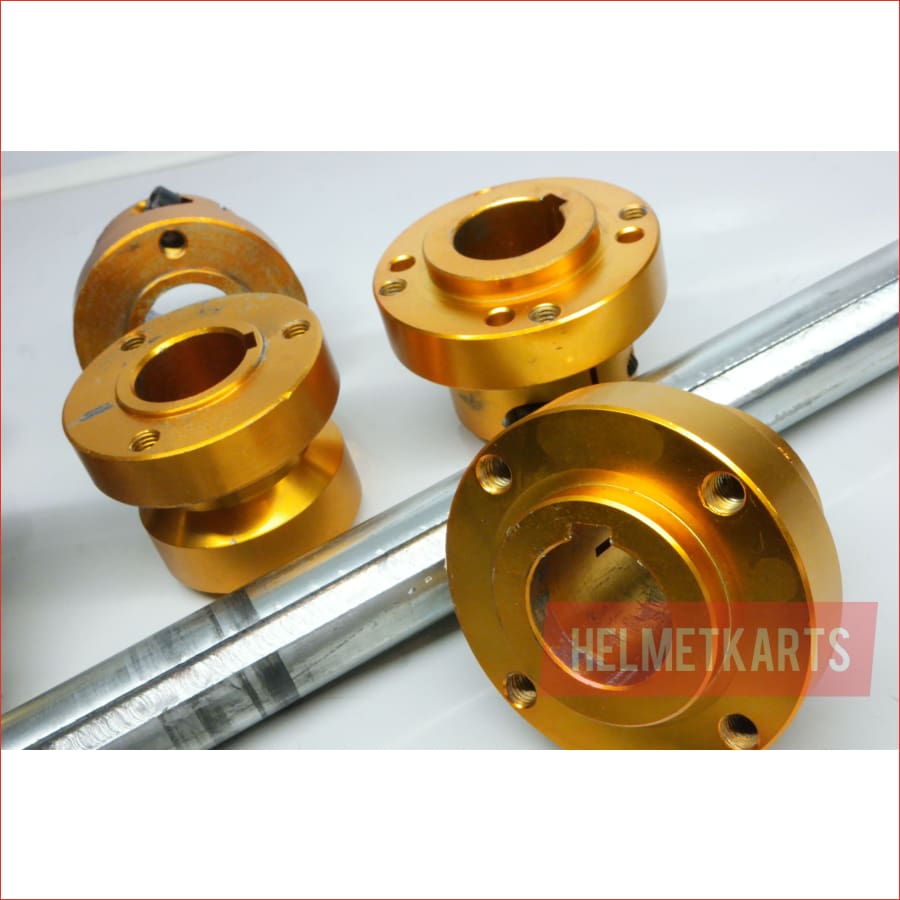

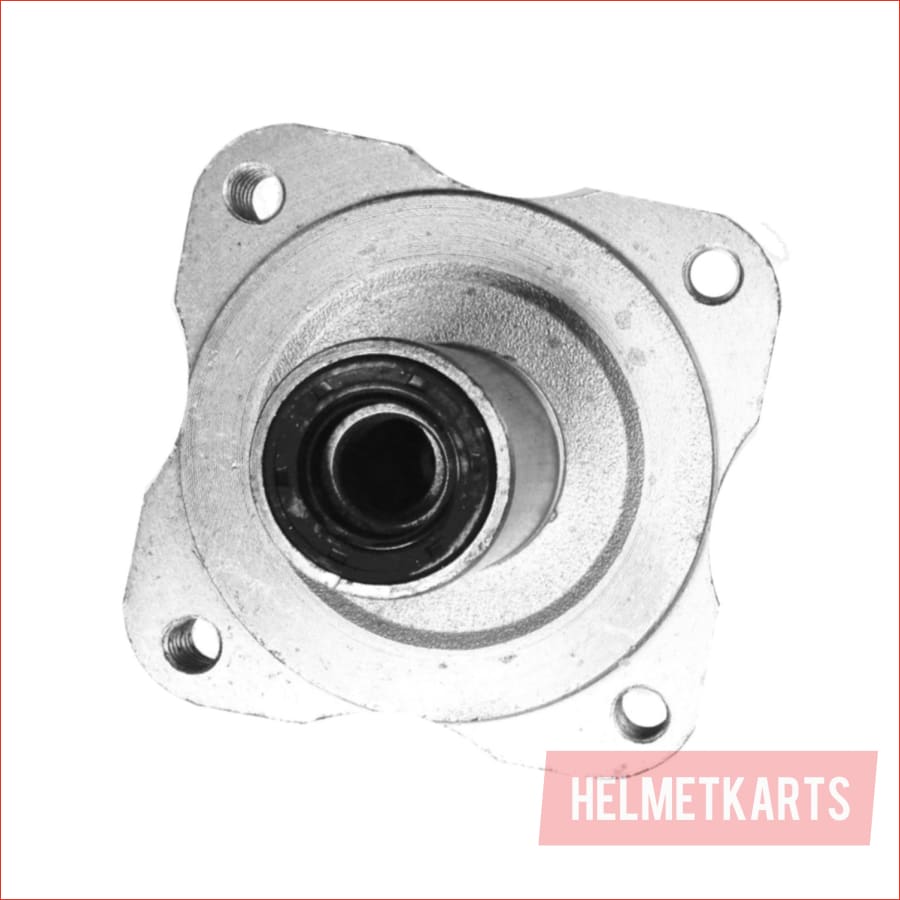

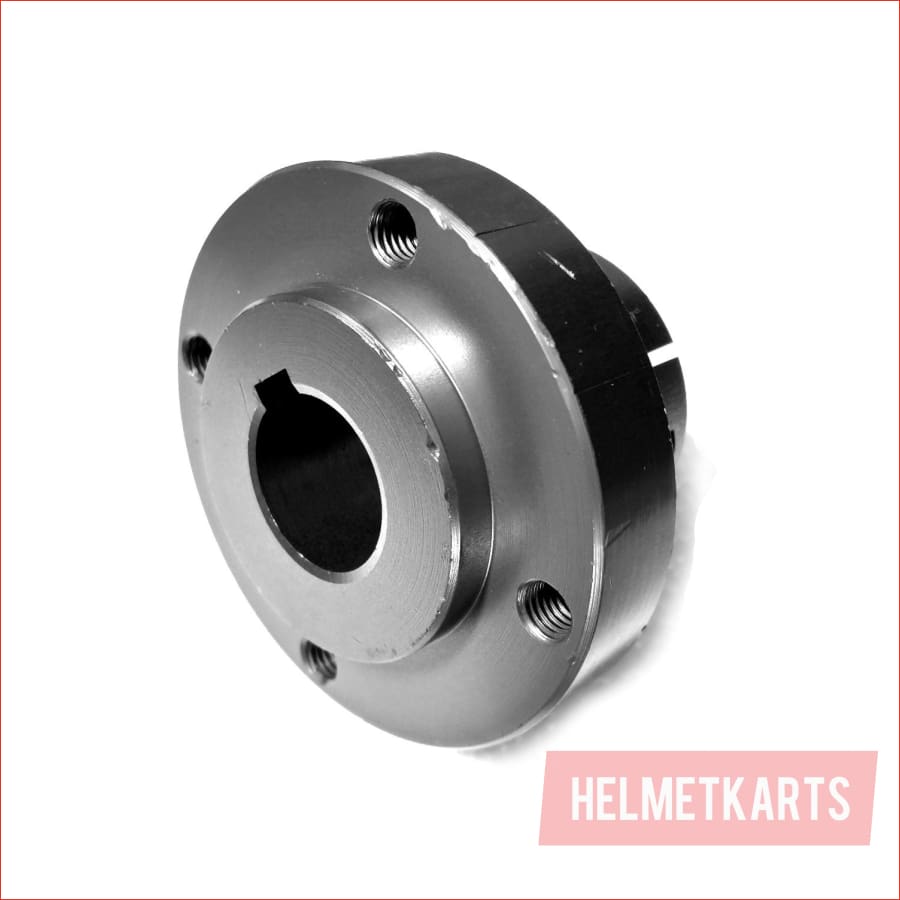

The front hubs come with a four-stud pattern, a 110mm mount hole distance, and a 15mm inner bearing, while the rear hubs are equipped with a three-stud pattern, a 50mm mount hole distance, and a 30mm inner diameter. Additionally, the sprocket rotor carriers feature a four-stud design with a 67mm mount hole distance and a 30mm inner diameter. To increase compatibility, the kit includes rear hub adapters that convert a three-stud 50mm pattern to a four-stud 110mm PCD.

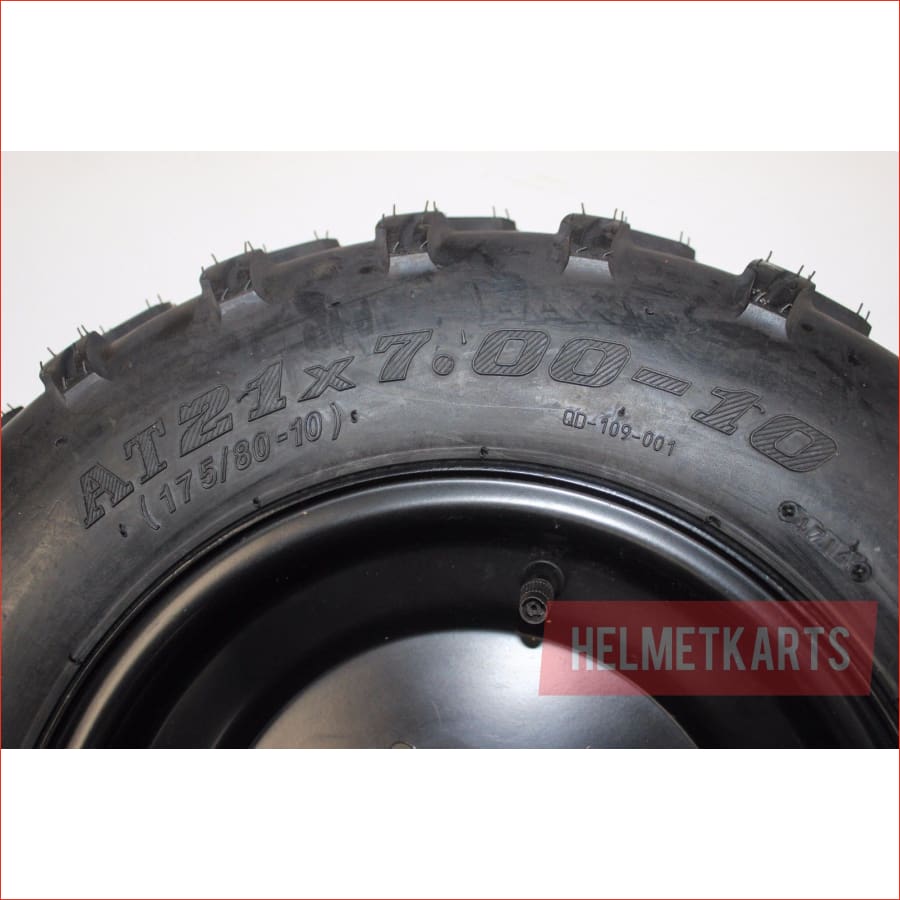

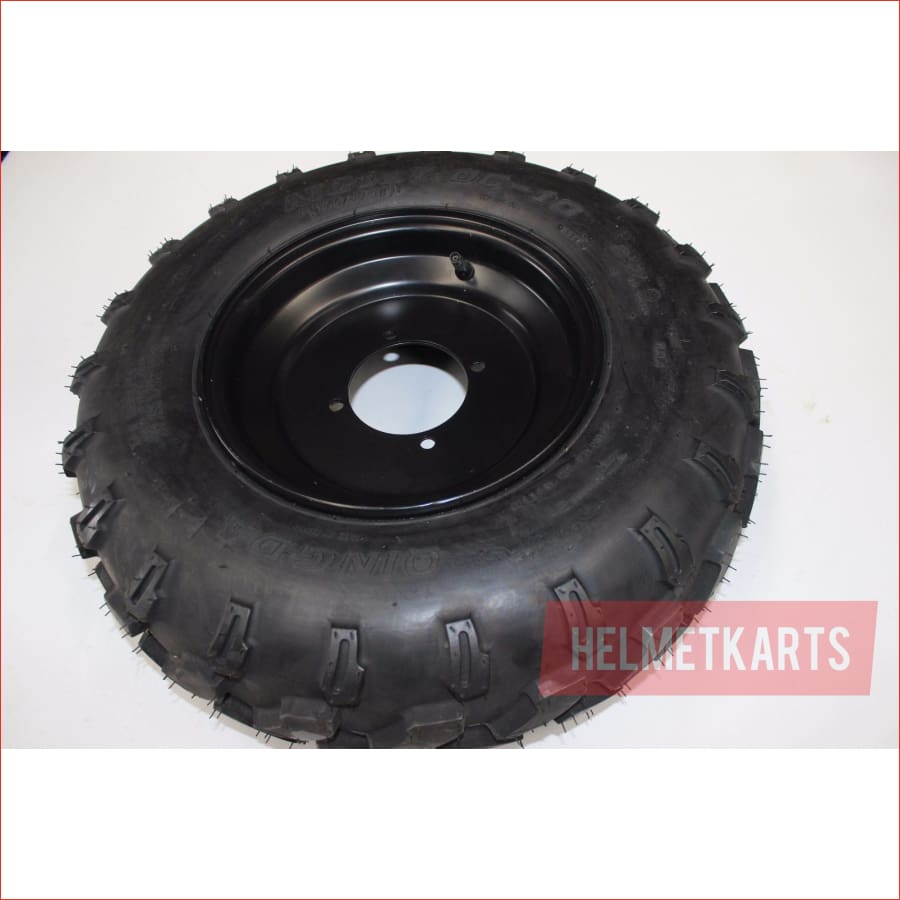

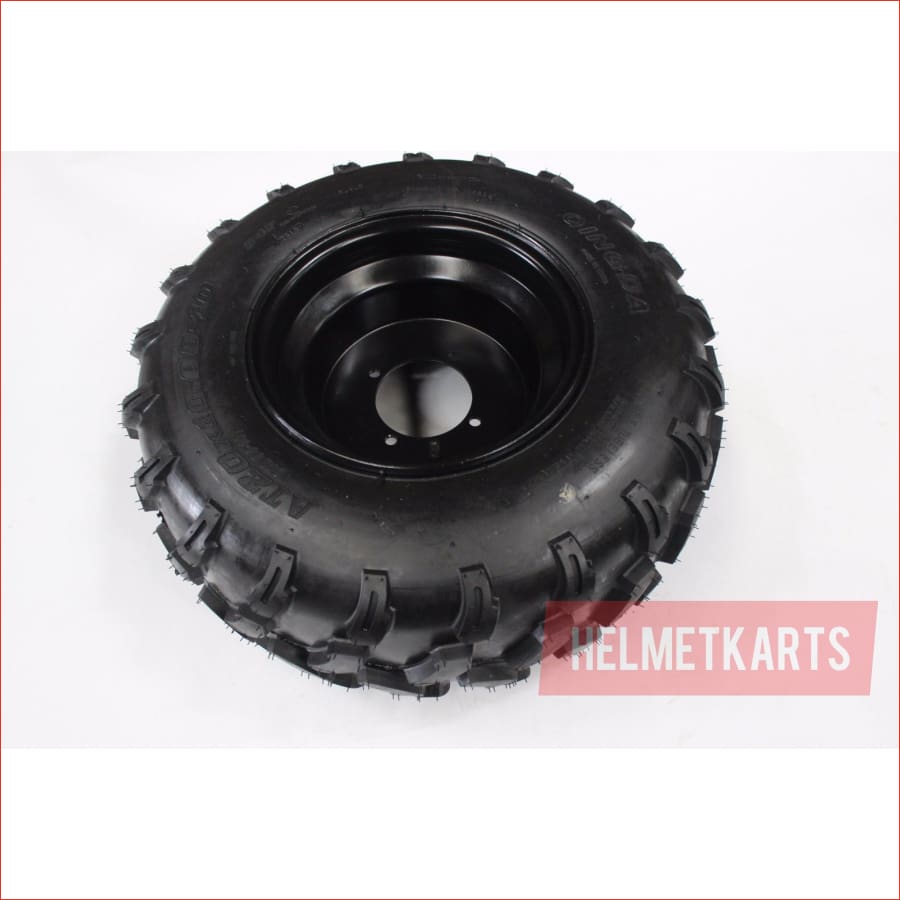

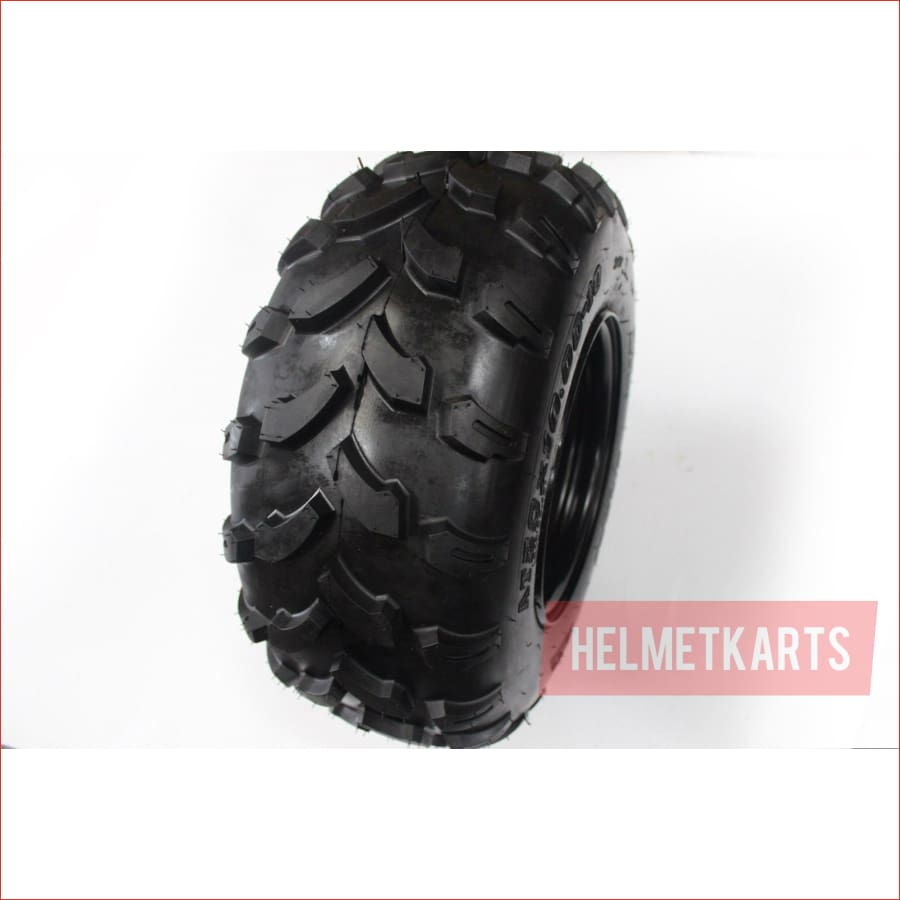

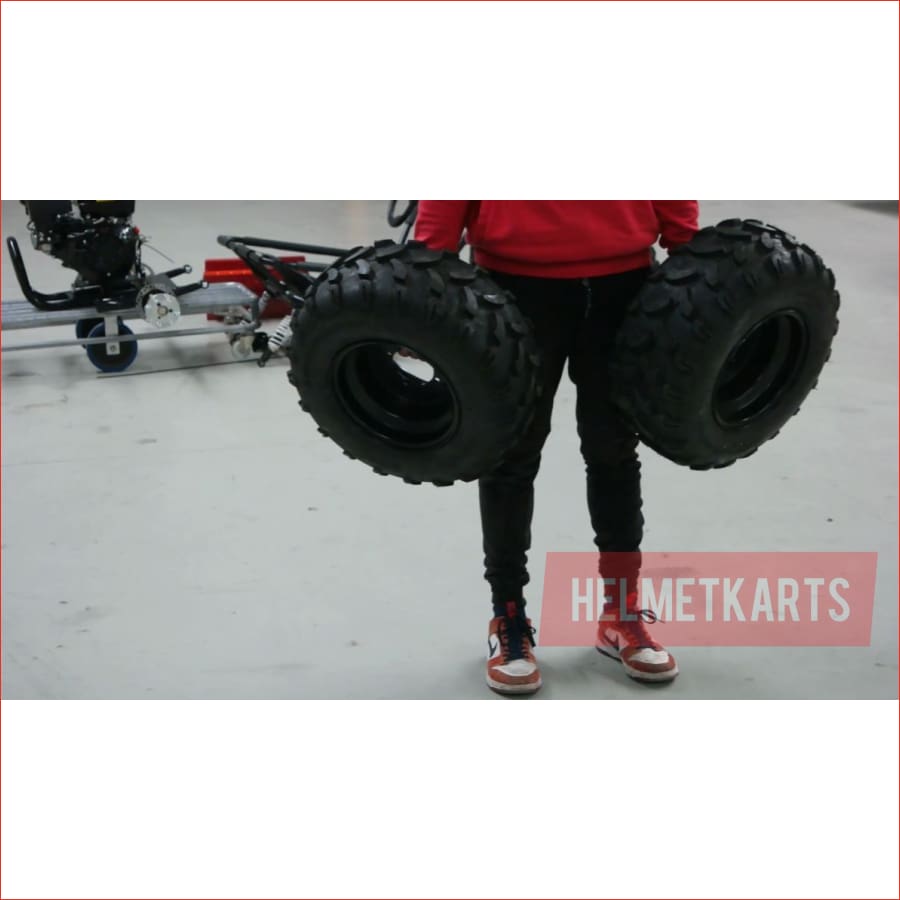

You will also find high-quality bolts, nuts, and keyways included in the package. The rear wheels measure 20x10.00-10 with a four-stud PCD and a 110mm mount hole distance, while the front wheels are sized at 21x7.00-10 with the same PCD and mount hole distance. This comprehensive kit is a direct bolt-on for the Helmetkarts go-kart range, making it a perfect choice for enthusiasts looking to enhance their vehicle's performance.
Specifications
| Specification | Detail |
|---|---|
| Axle Dimensions | 1100mm(l) x 30mm(thickness) |
| Axle Keyway | 8mm (full length) |
| Axle Bearings | Double barrel (30BG05S2G2DS) |

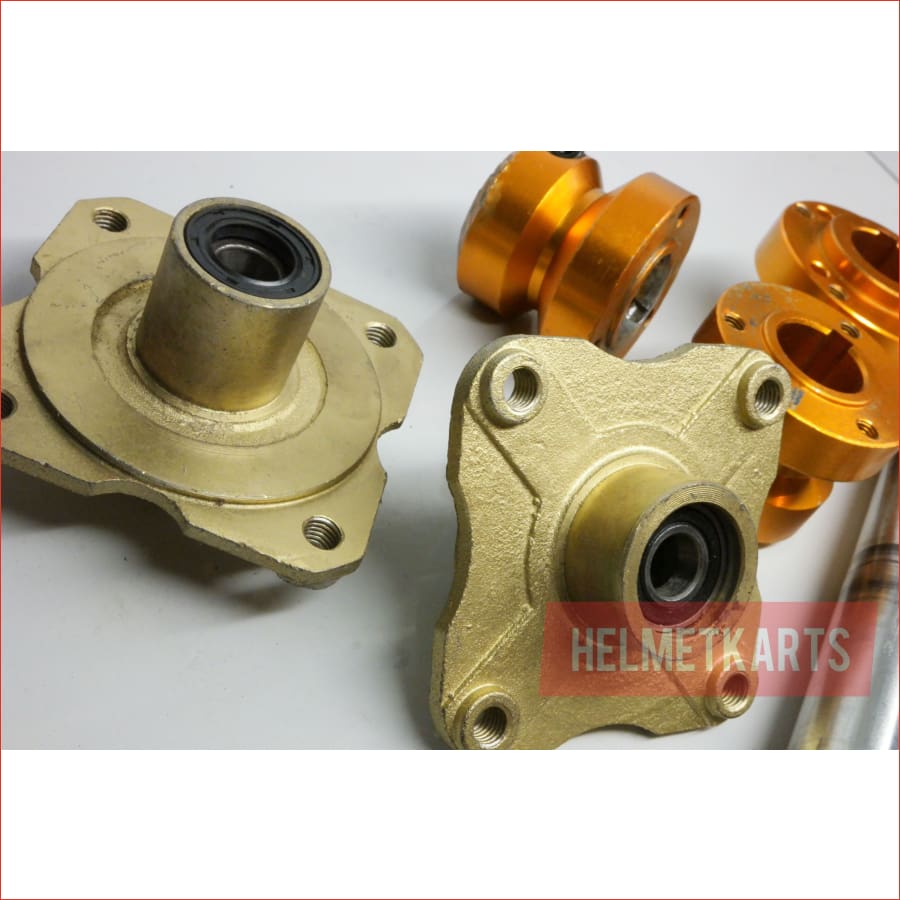

| Front Hubs | 4 stud / 110mm mount hole dist. / 15mm inner bearing |
| Rear Hubs | 3 stud / 50mm mount hole dist. / 30mm inner diameter |

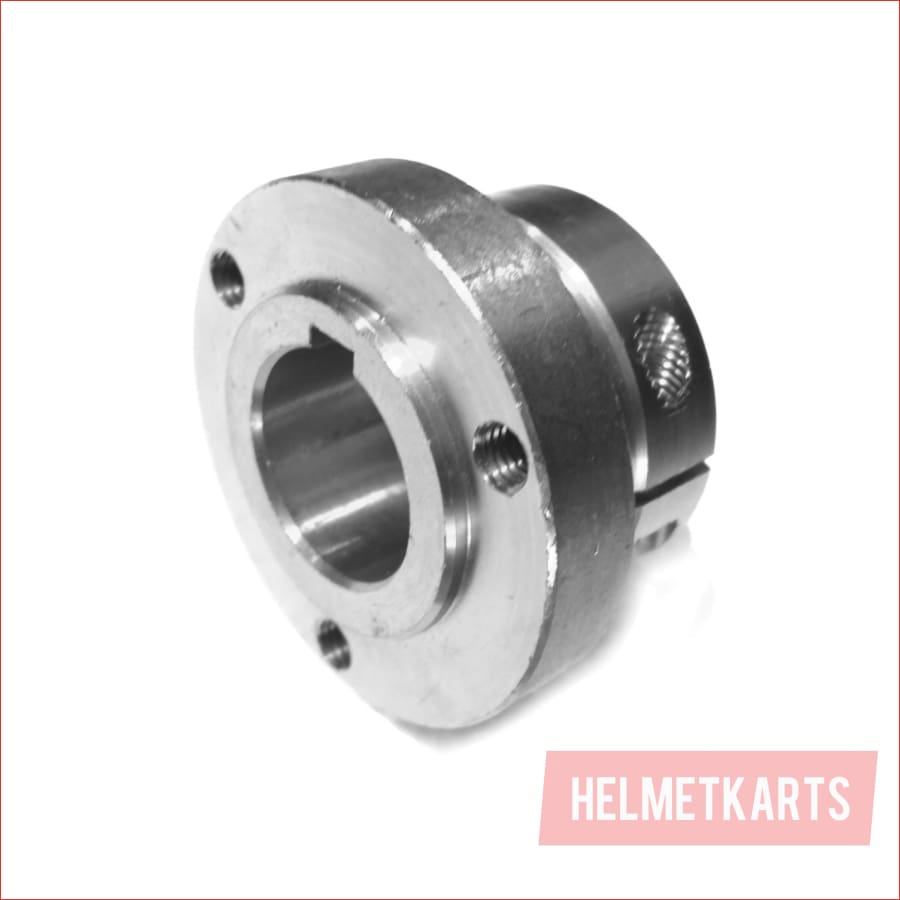

| Sprocket Rotor Carriers | 4 stud / 67mm mount hole dist. / 30mm inner diameter |

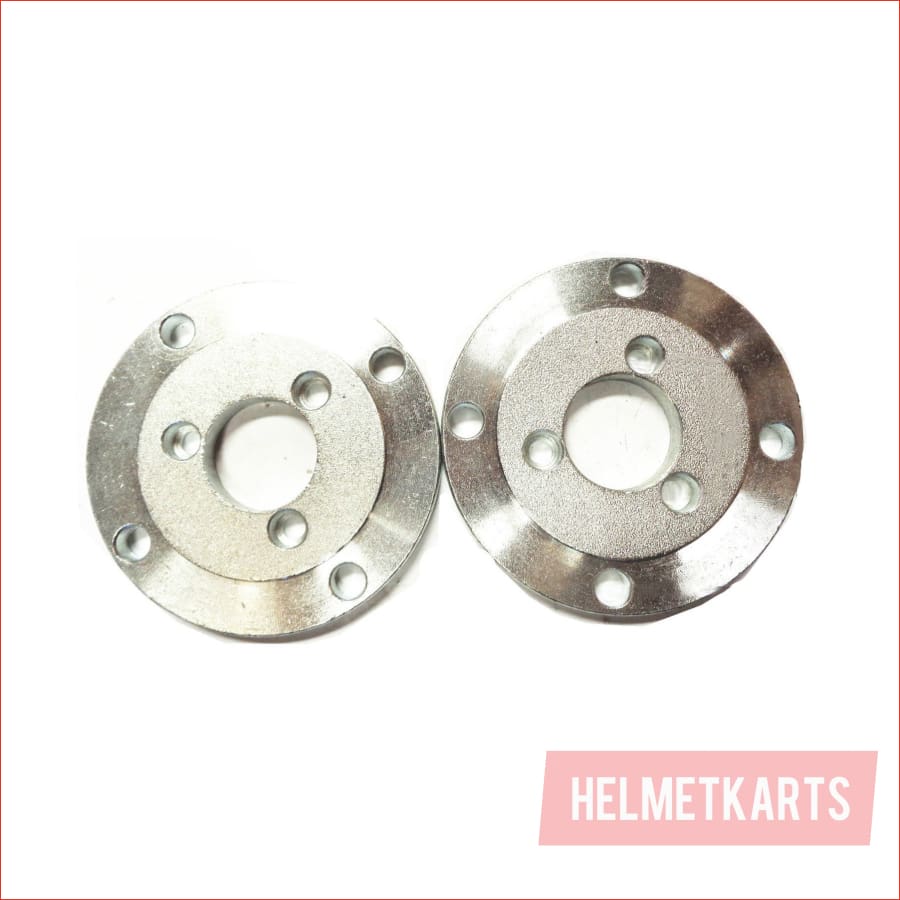

| Rear Hub Adapters | Converts PCD 3 stud / 50mm to PCD 4 stud 110mm |
| Hub / Carrier Mounting Thread | M10 |

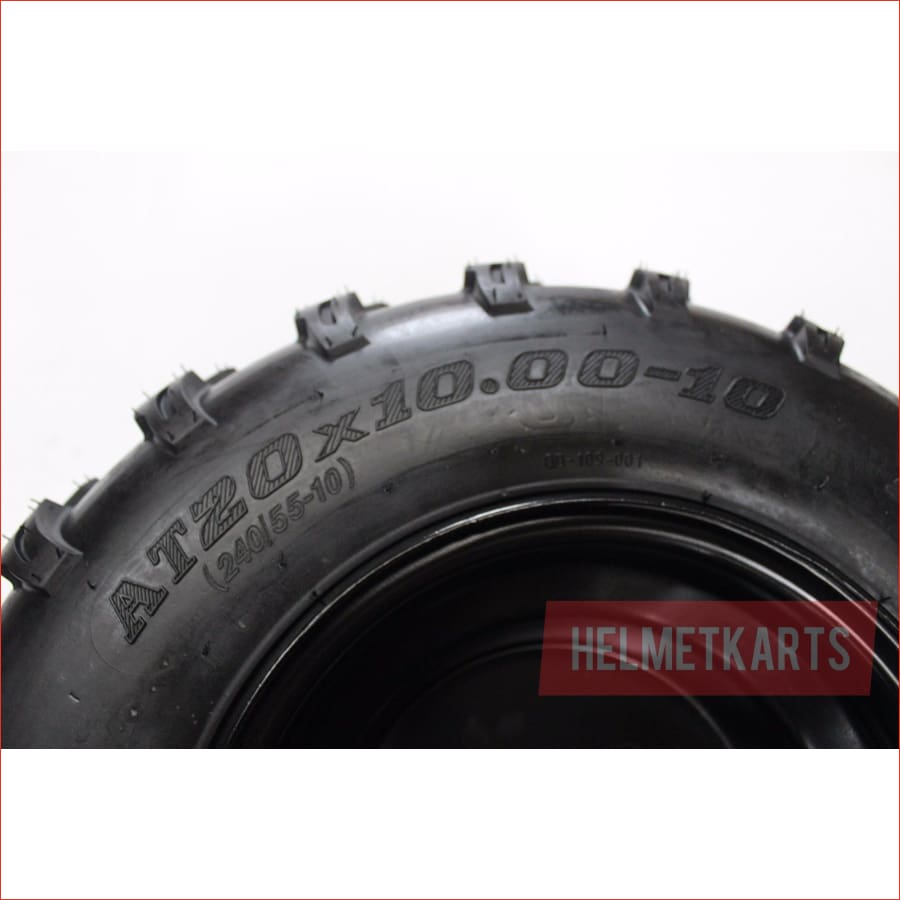

| Rear Wheel | 20x10.00-10 / PCD 4 stud / 110mm mount hole dist. |
| Front Wheel | 21x7.00-10 / PCD 4 stud / 110mm mount hole dist. |
| Included Accessories | Bolts / Nuts / Keyways |
| Typical Application | Helmetkarts Go kart range, Direct bolt on |
Features & Benefits
- Commercial-grade upgrade for enhanced performance.
- Complete running gear including robust wheels.
- Compatible with Helmetkarts go-kart range.
- Includes essential bolts, nuts, and keyways for easy installation.
- Durable construction with double barrel axle bearings.
