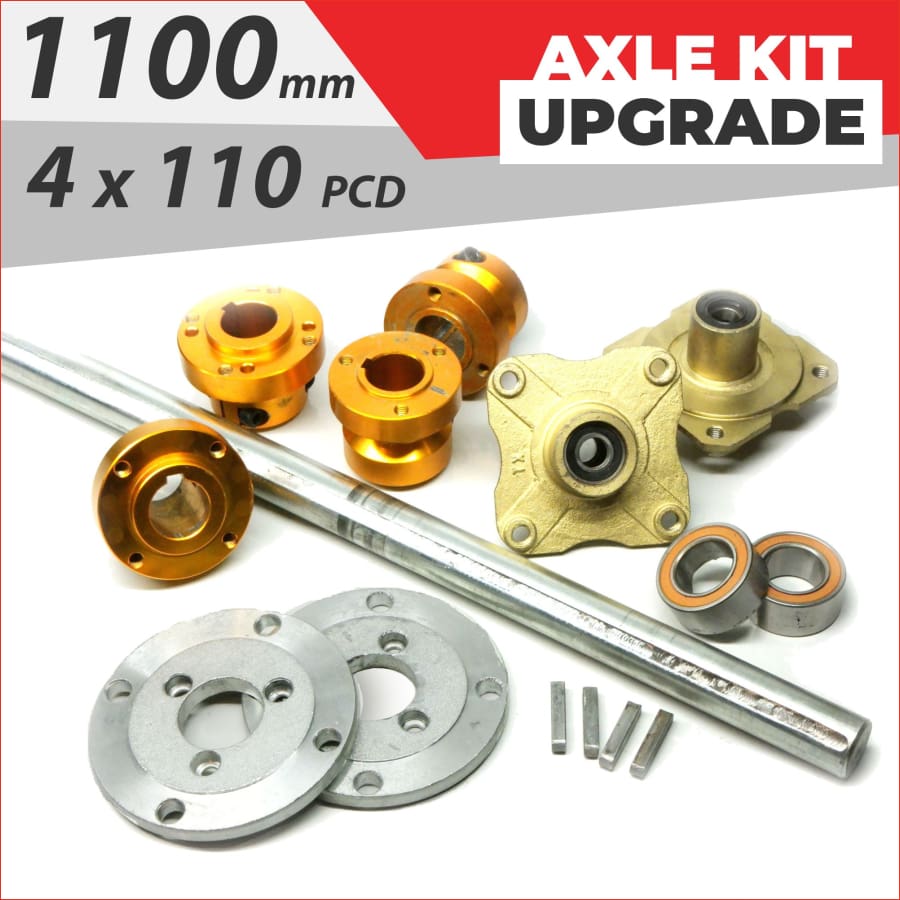

The Goliath Kit - Bundle Pack #1 is a commercial-grade upgrade designed for go-kart enthusiasts. This kit features an impressive array of components tailored to enhance your racing experience with Helmetkarts' go-kart range. It includes a robust axle that measures 1100mm in length and 30mm in thickness, ensuring durability and performance. The axle is equipped with a full-length 8mm keyway and double barrel axle bearings (30BG05S2G2DS) to provide smooth operation.
The front hubs come with a 4-stud configuration and a 110mm mount hole distance, paired with a 15mm inner bearing. Rear hubs feature a 3-stud set-up with a 50mm mount hole distance and a 30mm inner diameter. Also included are sprocket rotor carriers with a 4-stud, 67mm mount hole distance and a 30mm inner diameter. The rear hub adapters convert a PCD 3-stud/50mm setup to a PCD 4-stud/110mm setup, providing versatility in fitting.
This bundle includes all necessary bolts, nuts, and keyways for installation. It is designed for direct bolt-on applications, making it an ideal choice for upgrading your go-kart's performance with ease.
Specification | Detail |
---|---|
Axle Dimensions | 1100mm (length) x 30mm (thickness) |
Axle Keyway | 8mm (full length) |
Axle Bearings | Double barrel (30BG05S2G2DS) |
Front Hubs | 4-stud / 110mm mount hole distance / 15mm inner bearing |
Rear Hubs | 3-stud / 50mm mount hole distance / 30mm inner diameter |
Sprocket Rotor Carriers | 4-stud / 67mm mount hole distance / 30mm inner diameter |
Rear Hub Adapters | Converts PCD 3-stud / 50mm to PCD 4-stud 110mm |
Hub / Carrier Mounting Thread | M10 |
Includes | Bolts / Nuts / Keyways |
Typical Application | Helmetkarts Go kart range. Direct bolt-on |
