1 Meter Braided line - AN (Various sizes)
$21.50
About this product

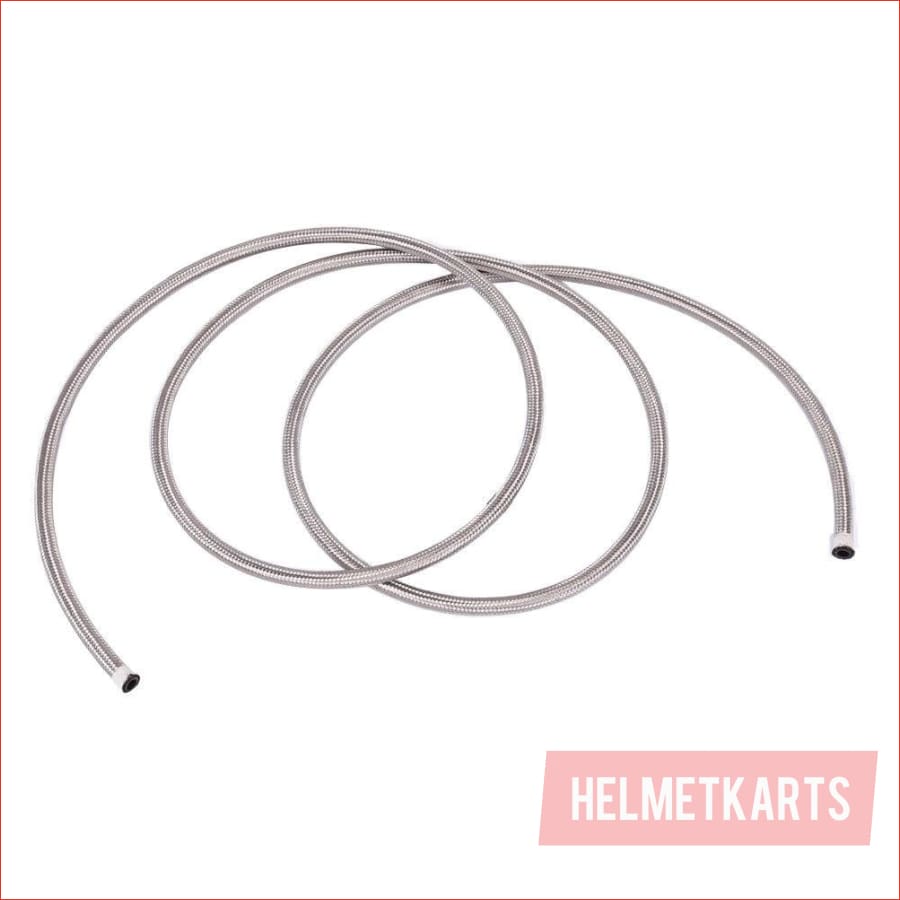

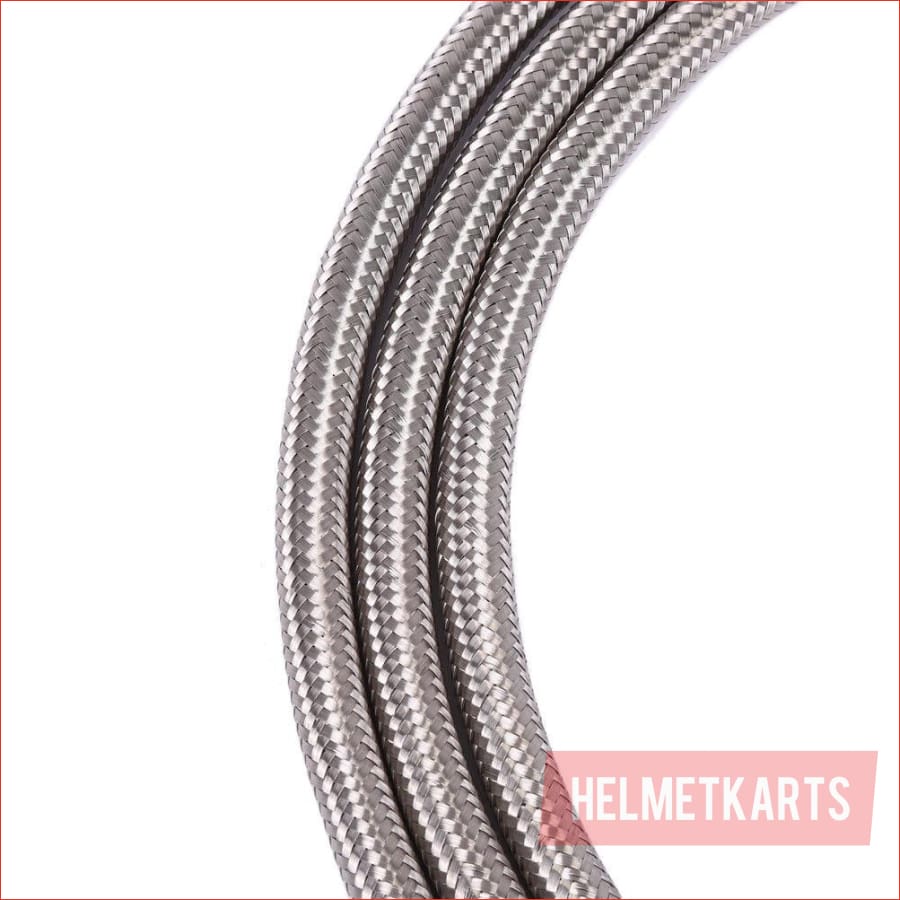

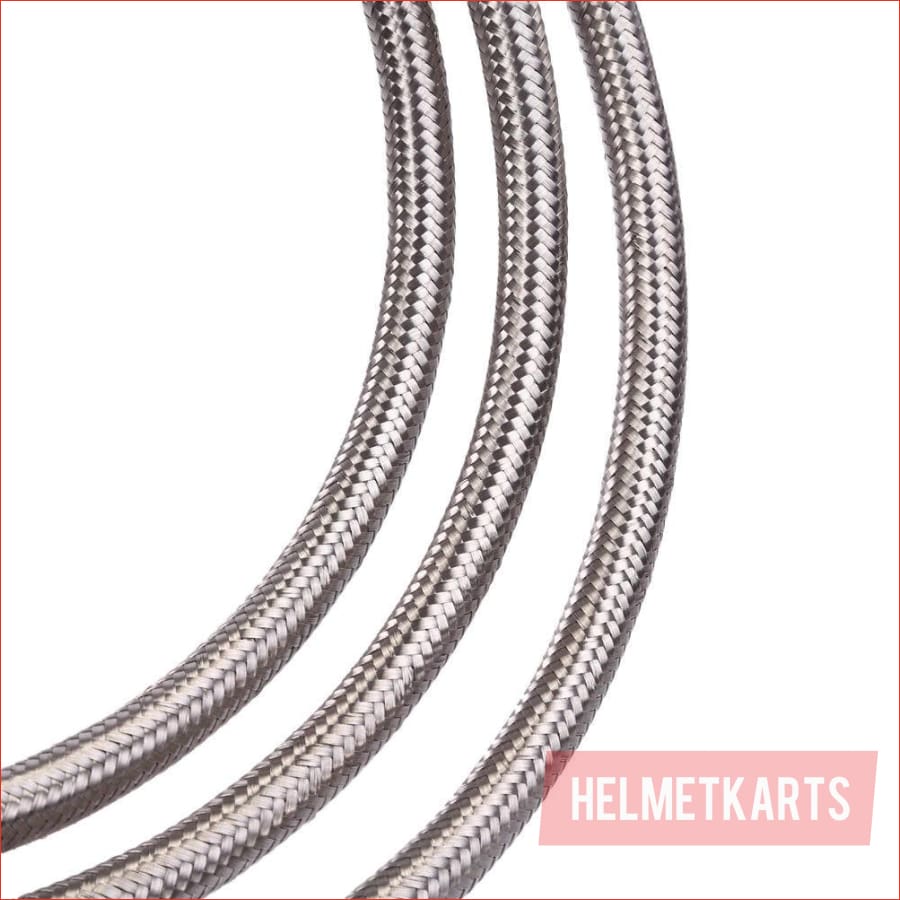

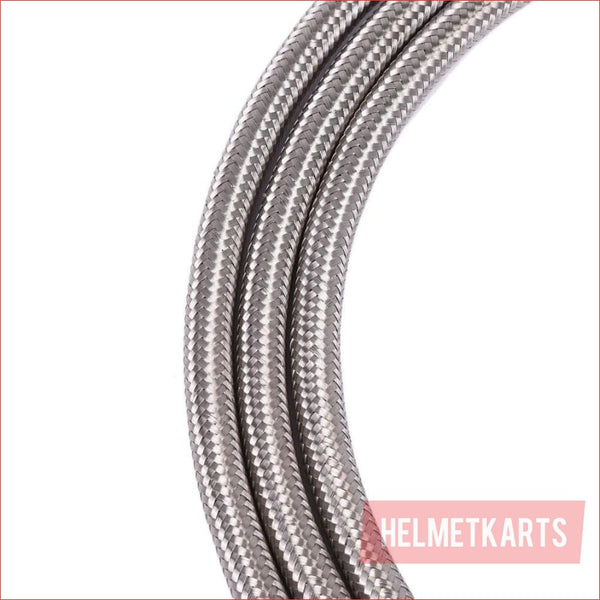

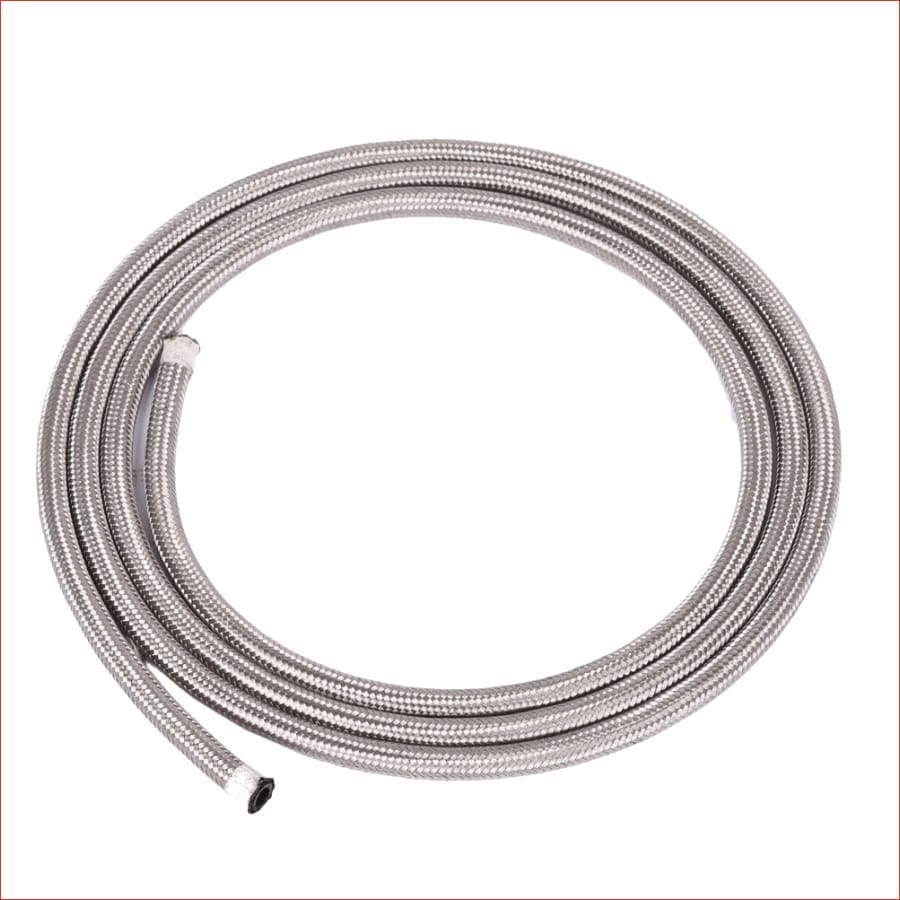

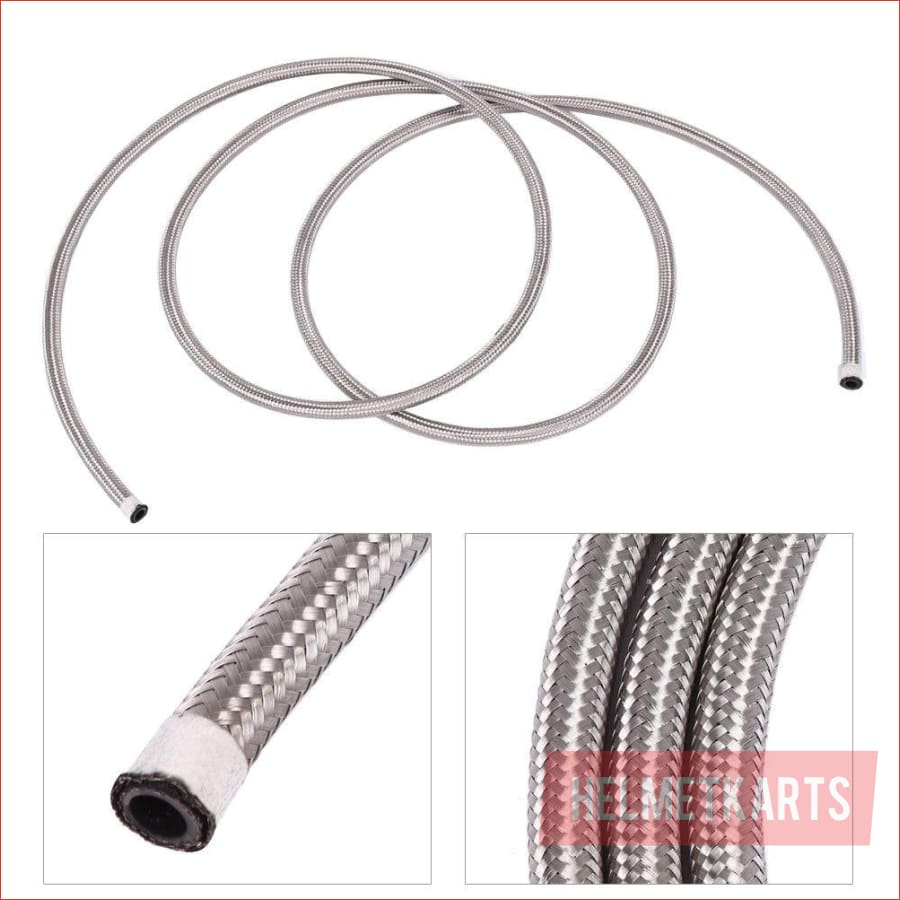

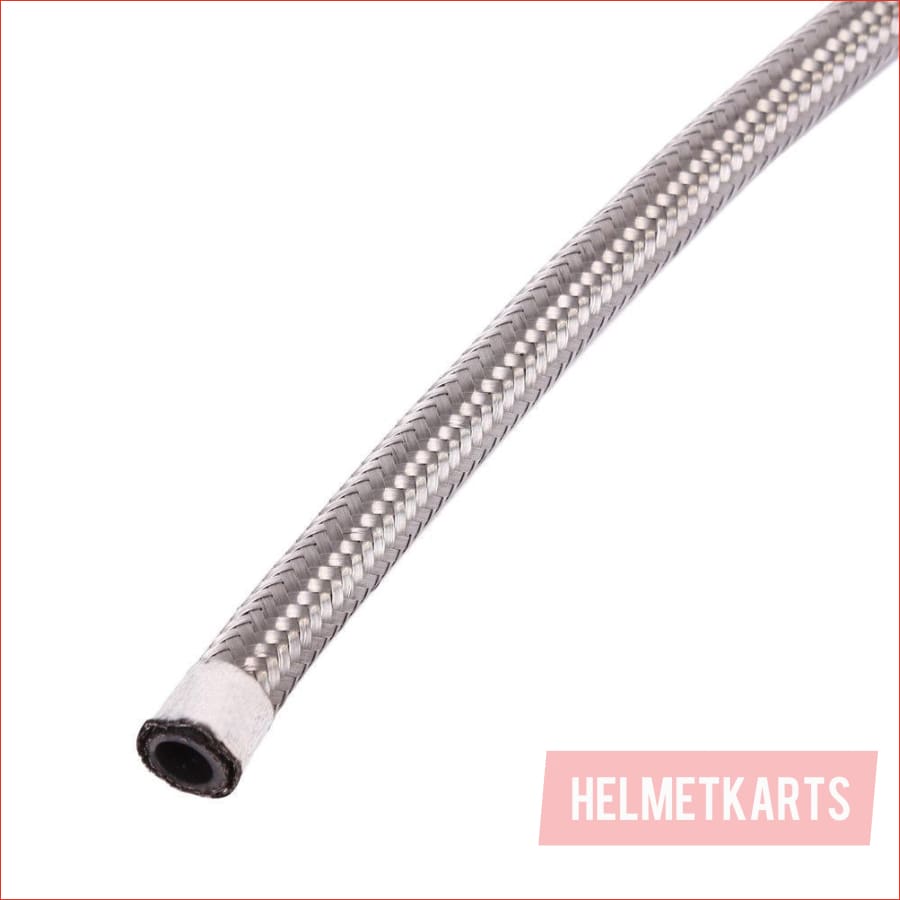

This 1 Meter Braided Hose Line is designed for various AN sizes, offering flexibility and durability for various applications. Constructed from stainless steel and polyurethane, this fuel line is capable of withstanding intense conditions. With a pressure rating of 1000 PSI and a burst rating of 5000 PSI, it ensures optimal performance. The temperature rating from -73°C to +260°C makes it suitable for extreme environments. Available in AN sizes 3, 4, 6, 8, 10, and 12, it caters to different needs. The 1-meter length can be extended by increasing the quantity ordered.
Specifications
| Specification | Detail |
|---|---|
| Hose Type | AN |
| Material | Stainless Steel PU (Polyurethane) |
| Pressure Rating | 1000 Working PSI / 5000 Burst PSI |
| Temperature Rating | -73°C to +260°C |
| Sizes Available | AN - 3, 4, 6, 8, 10, 12 |
| Length | 1 Meter |
| AN - 3 Inside Diameter | 3.18 mm (1/8" 0.125") |
| AN - 3 Outside Diameter | 6.35mm (1/4" 0.25") |
| AN - 4 Inside Diameter | 5.94mm (1/4") |
| AN - 4 Outside Diameter | 9.9mm (3/8") |
| AN - 6 Inside Diameter | 8.3 mm (5/16") |
| AN - 6 Outside Diameter | 13.4 mm (17/32") |
| AN - 8 Inside Diameter | 10.5 mm (7/16") |
| AN - 8 Outside Diameter | 15 mm (19/32") |
| AN - 10 Inside Diameter | 14.2 mm (9/16") |
| AN - 10 Outside Diameter | 19mm (3/4") |
| AN - 12 Inside Diameter | 18 mm (11/16") |
| AN - 12 Outside Diameter | 22.6 mm (7/8") |
Features & Benefits
- Durable stainless steel and polyurethane construction for long-lasting performance.
- Wide temperature range suitable for extreme conditions.
- Reliable high pressure and burst ratings ensure safety in operation.
- Available in multiple AN sizes for versatile applications.
- Easily extendable length by increasing the order quantity.
