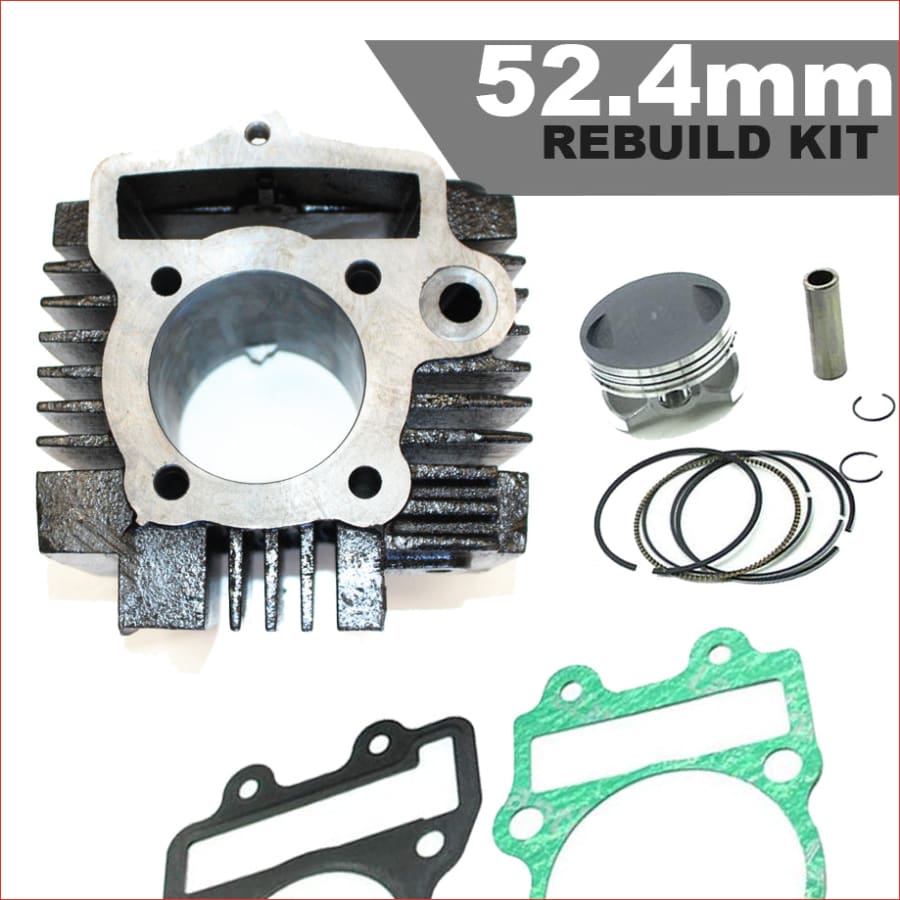

52.4mm Cylinder Piston Rebuild Kit - 110cc

$71.00

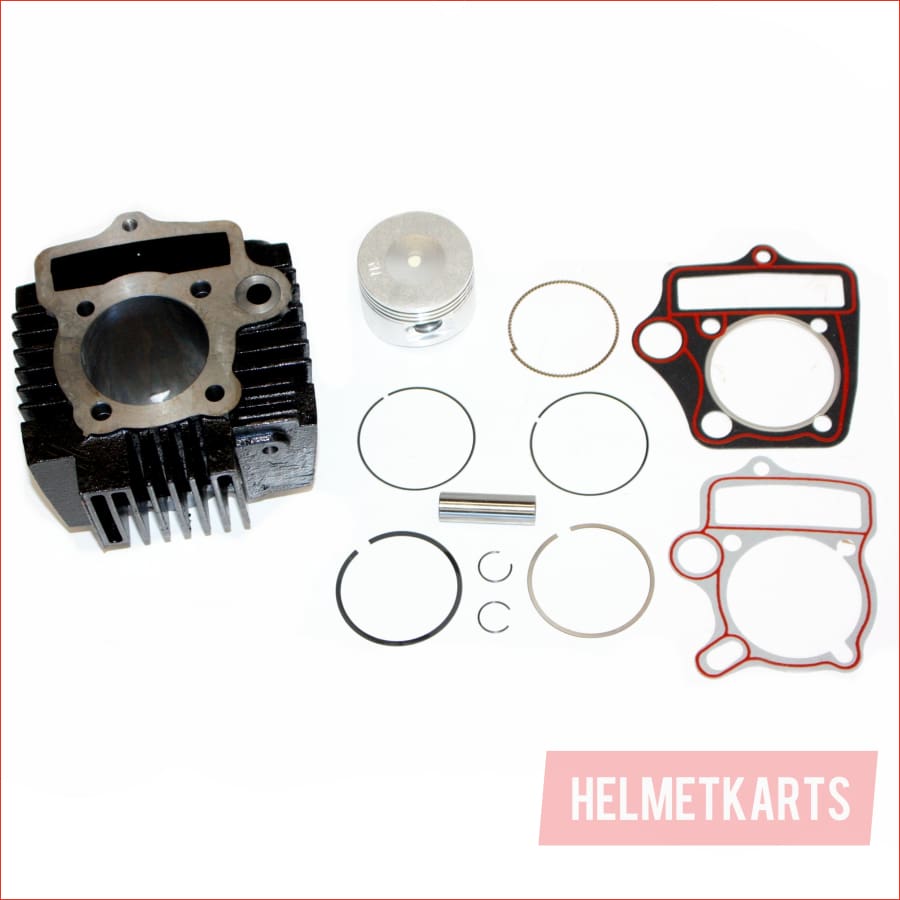

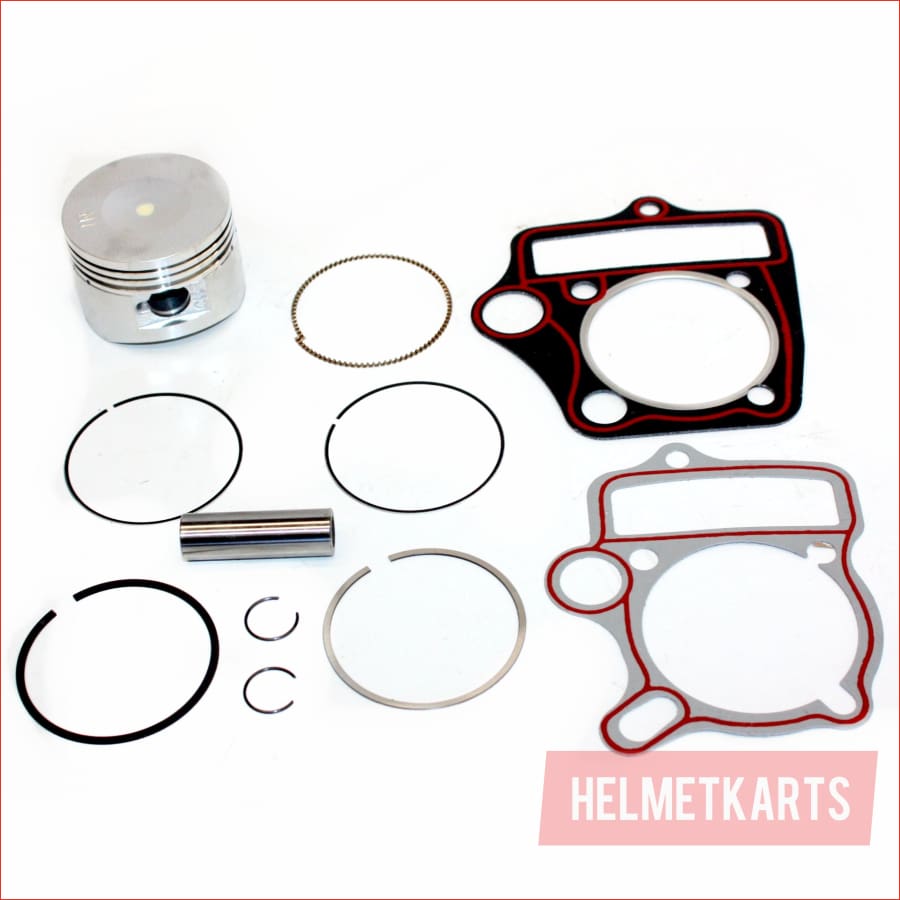

Engine Rebuild Kit (Cylinder / Piston / Gaskets )

Application: 110cc Displacement (Dirt Bike, ATV Quad, Buggy)

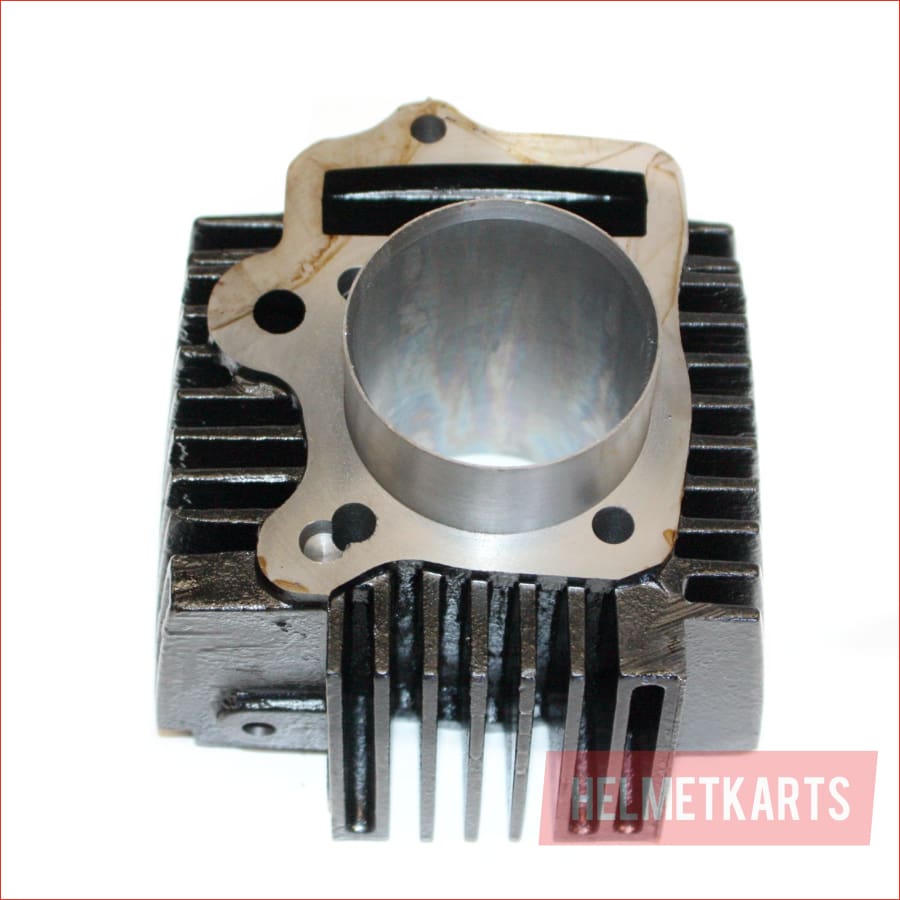

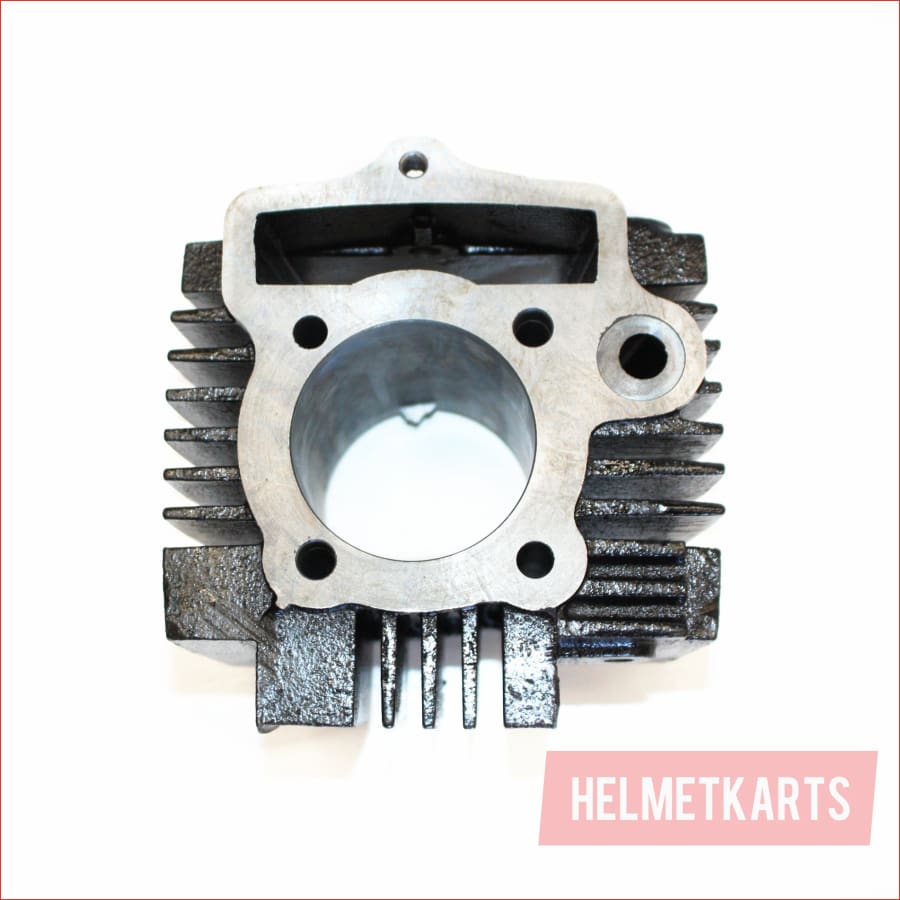

DIAMETER OF BORE	approx 52.4mm
DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS	approx 51.93mm / 50.83mm / 50.37mm / 51.13mm

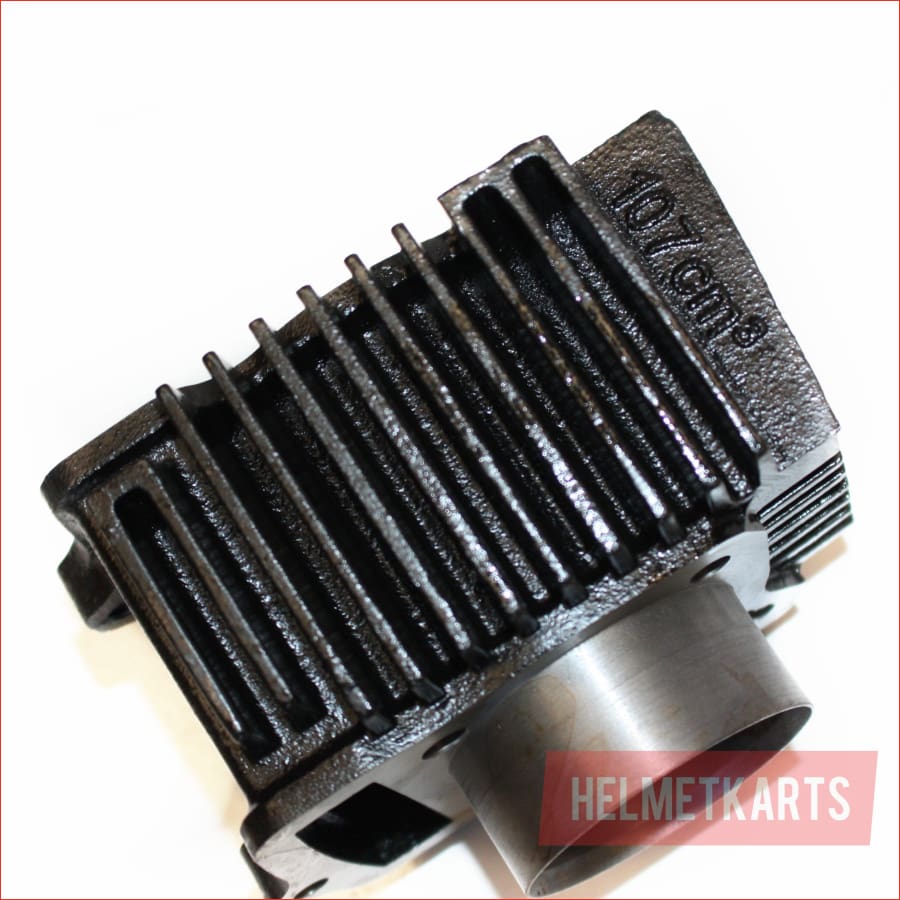

HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE)	approx 69.71mm
HEIGHT OF THE SLEEVE	approx 26mm

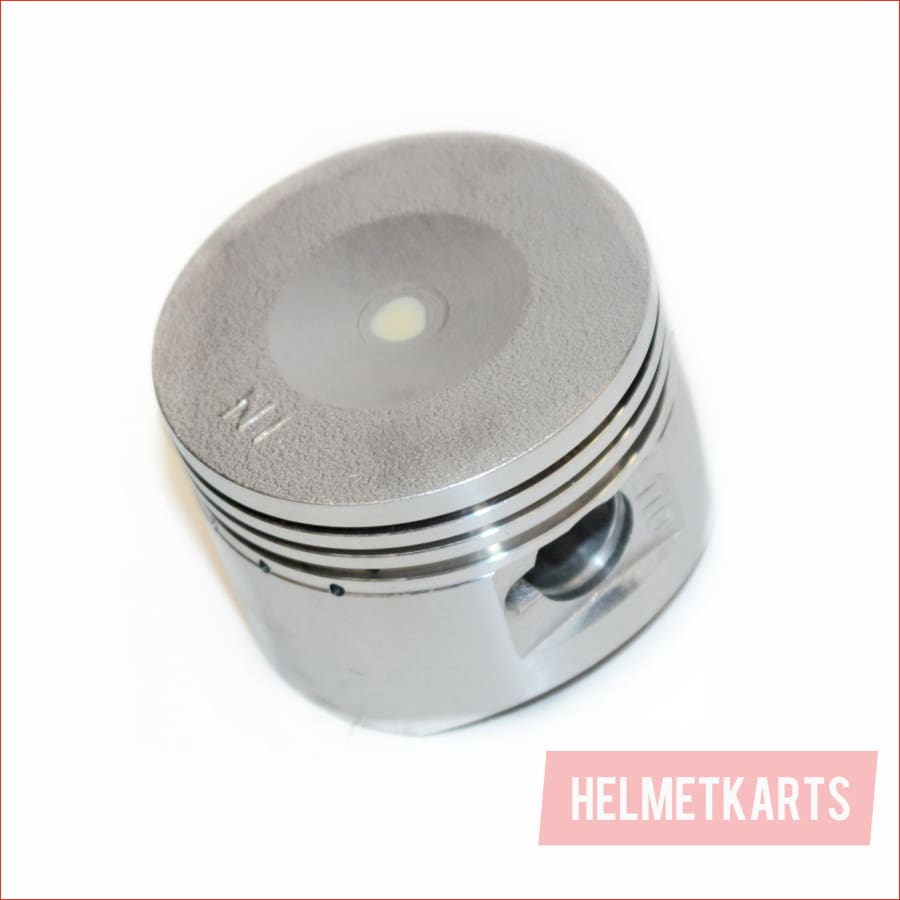

DIAMETER OF PISTON (Bottom)	approx 52.4mm
HEIGHT OF PISTON	approx 37.14mm

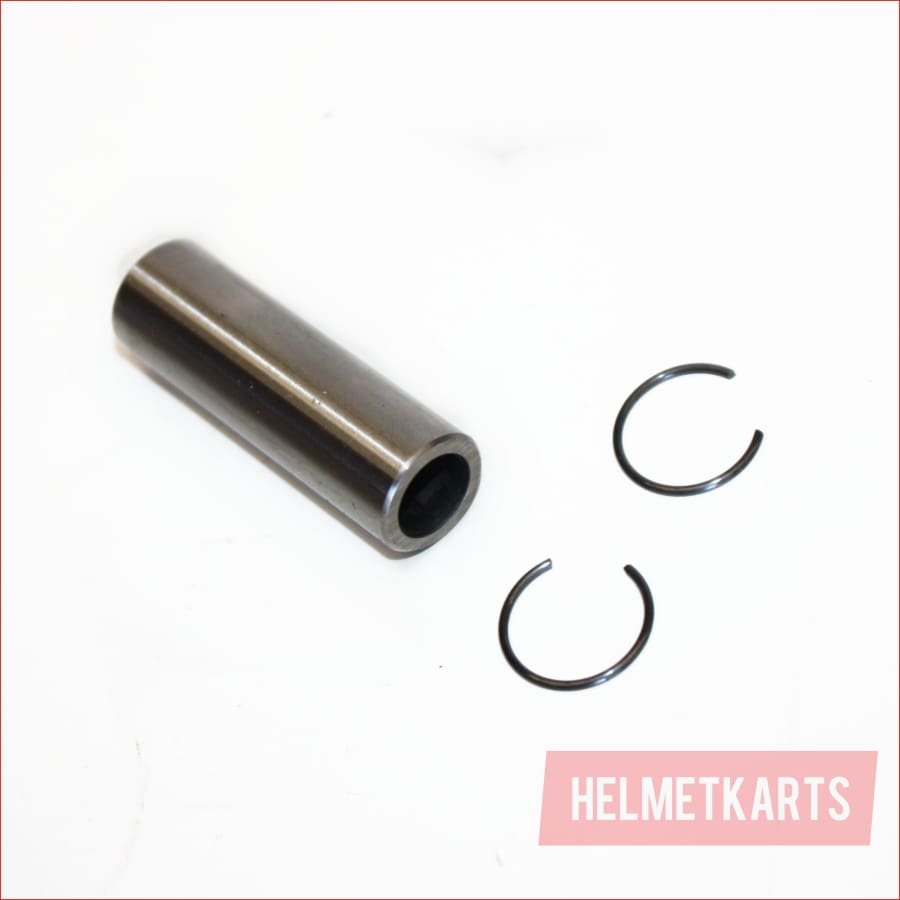

LENGTH OF PISTON PIN	approx 41.30mm
DIAMETER OF PISTON PIN	approx 12.97mm
