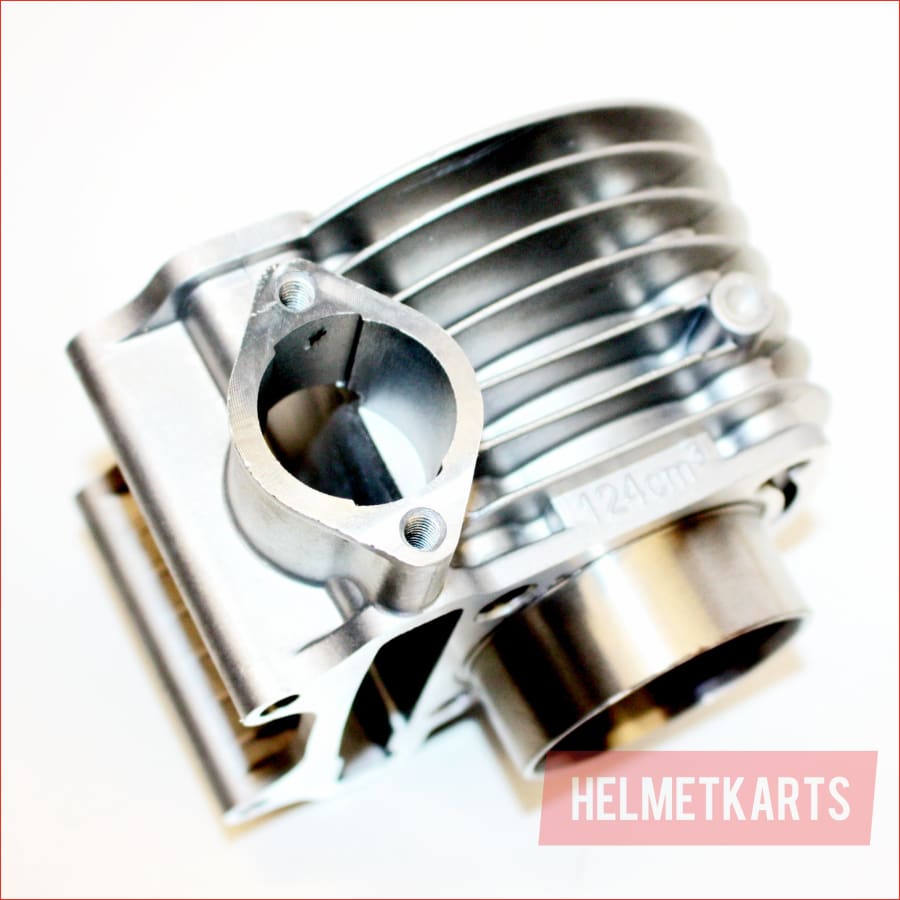

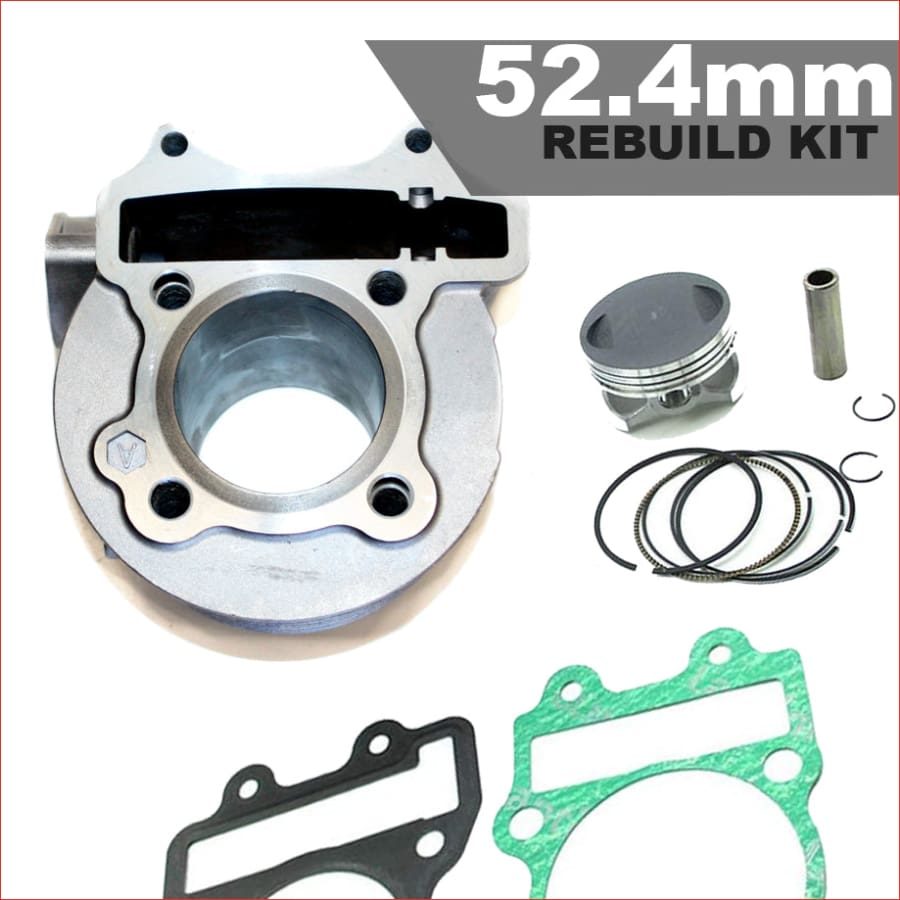

Helmetkarts - 52.4mm Cylinder Piston Rebuild Kit - 125cc GY6 Engine Cylinder Barrel Bore, Rebuild

52.4mm Cylinder Piston Rebuild Kit - 125cc GY6

$64.00

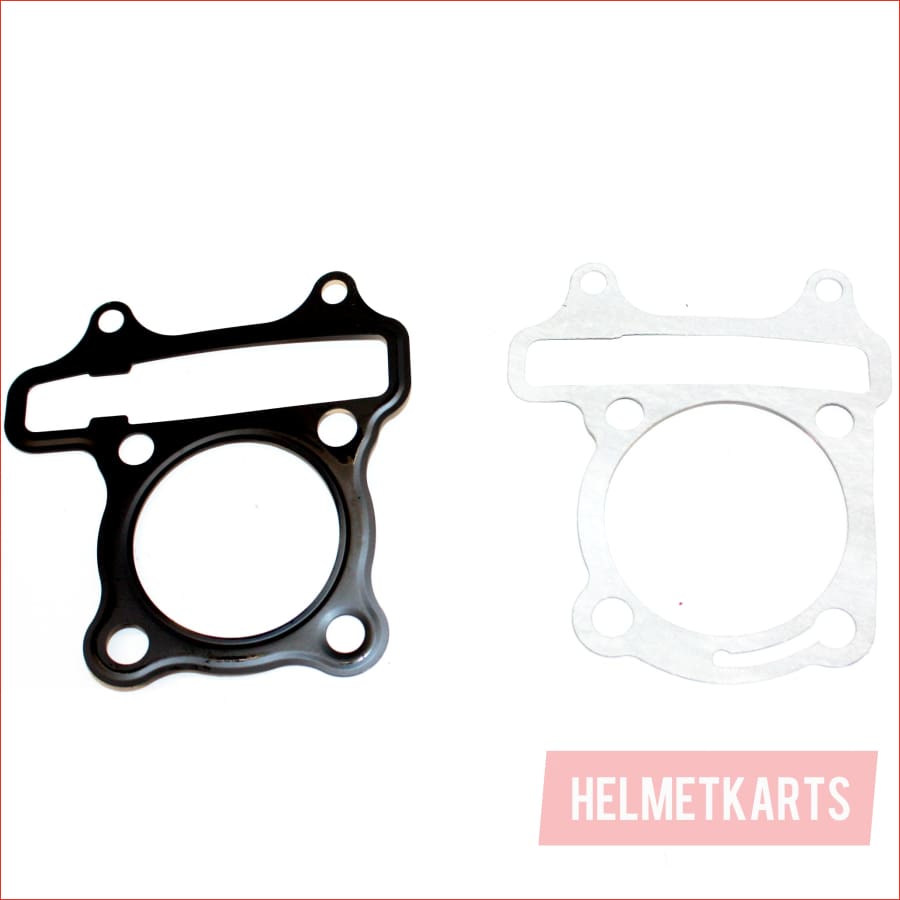

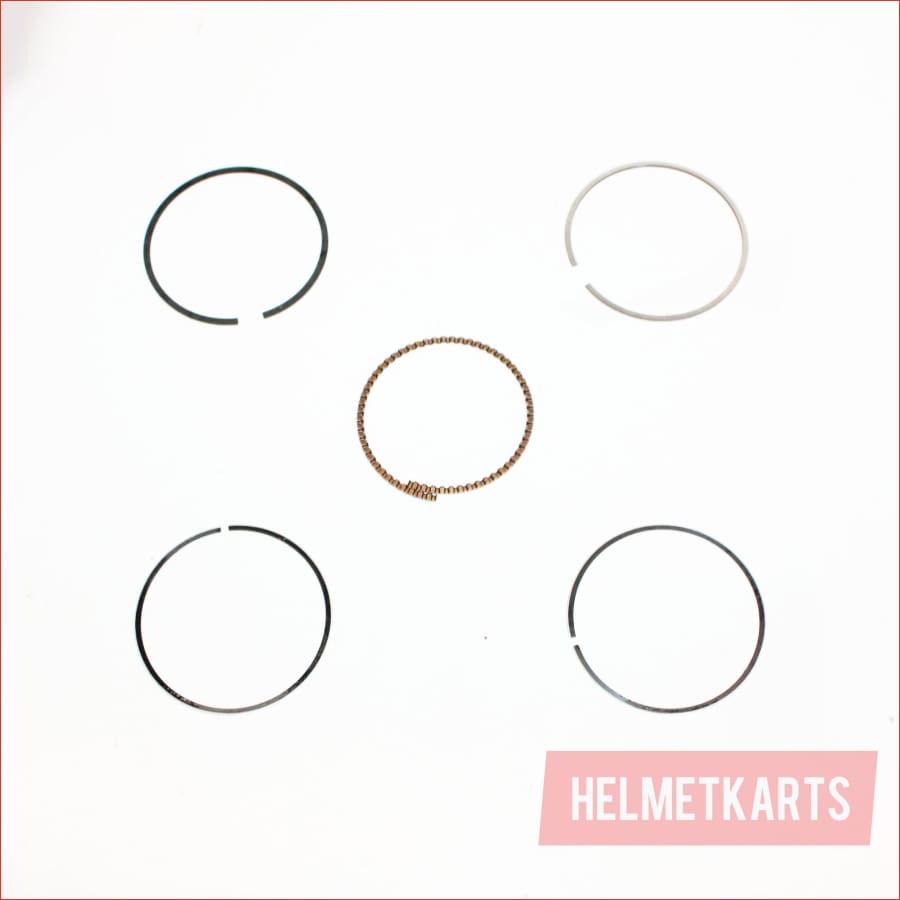

Engine Rebuild Kit (Cylinder / Piston / Gaskets )

Application: GY6 125cc Displacement

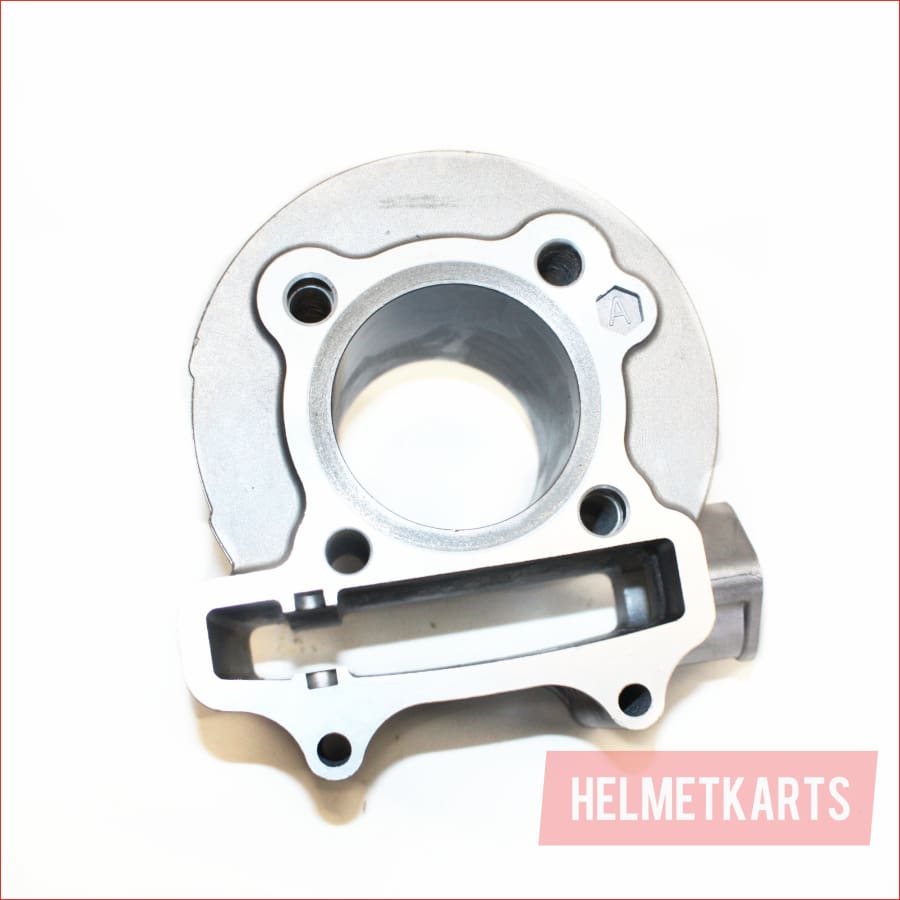

DIAMETER OF BORE	approx 52.22mm
DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS	approx 53.42mm / 53.65mm / 53.14mm / 53.30mm
HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE)	approx 68.80mm
HEIGHT OF THE SLEEVE	approx 21.56mm

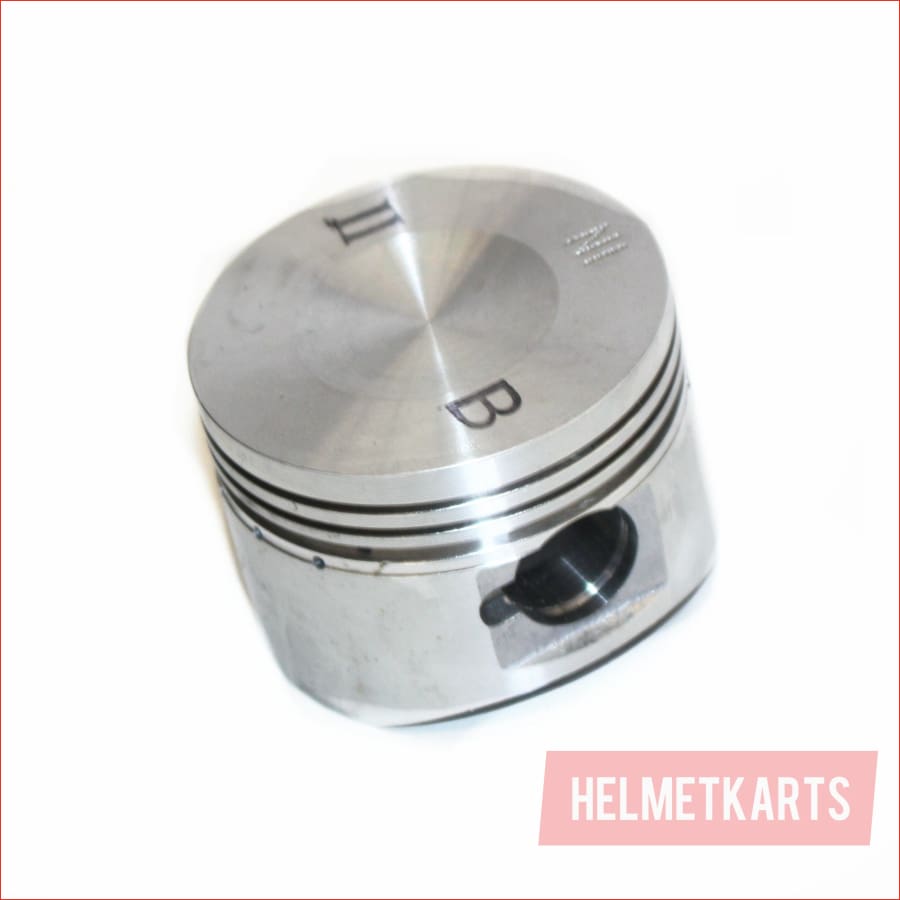

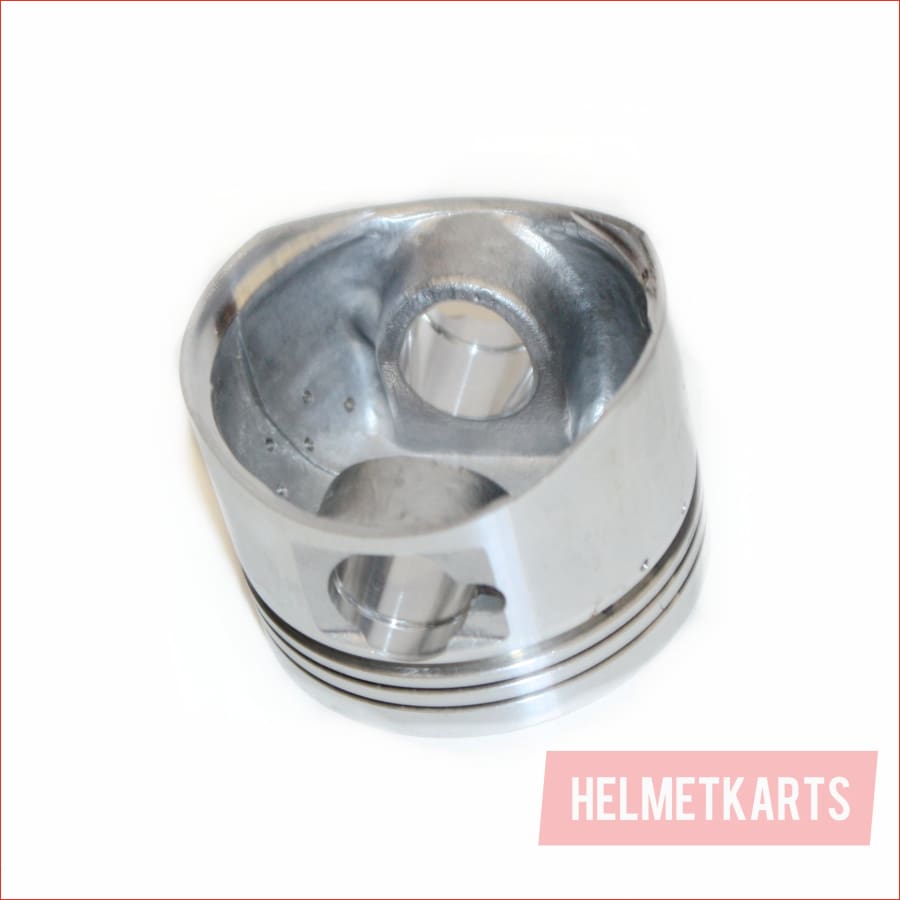

DIAMETER OF PISTON (Bottom)	approx 52.38mm
HEIGHT OF PISTON (Bottom to Top Middle)	approx 37.05mm

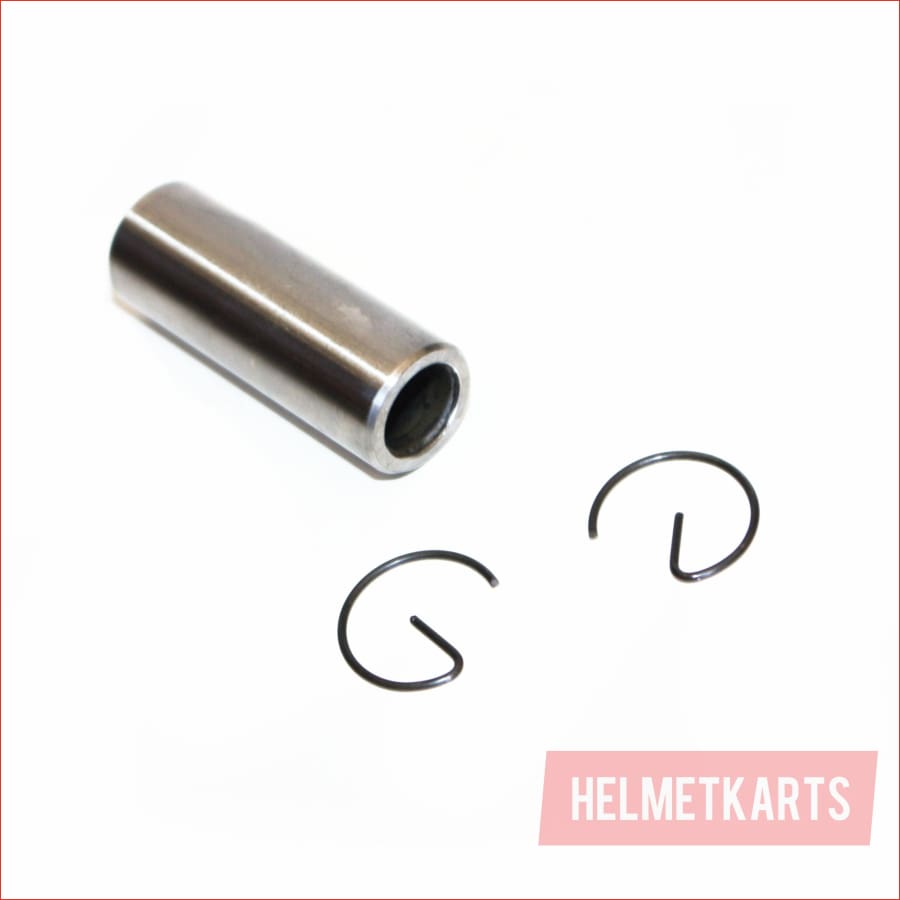

LENGTH OF PISTON PIN	approx 41.26mm
DIAMETER OF PISTON PIN	approx 14.98mm
