Helmetkarts Australia Ltd Pty - Wet clutch 2:1 reduction gearbox (GX240 - GX390) Clutch / Gearbox

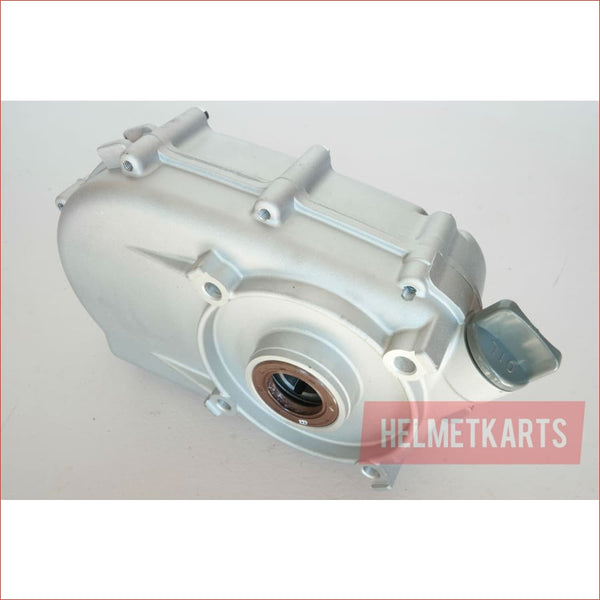

Wet clutch 2:1 reduction gearbox (GX240 - GX390)

$199.00

Application: 8HP - 13HP (GX240 - GX390)

• Input Shaft: 25mm Diameter, 60mm Long

• Input Shaft Keyway: 7mm

• Input Mounting Holes: 90mm Square

• Output Shaft: 22mm Diameter, 50mm Long

• Output Shaft Keyway: 7mm

• Output Mounting Holes: 70mm Square

Precision machines aluminium die cast housing

Standard SAE mounting hole configuration

Clutch drum w/ weights

Oil seal

Bearings E-205 / GB276-82

Gaskets

Oil dipstick with breather

M8(x4) - 21mm Threaded deep output mounting holes
